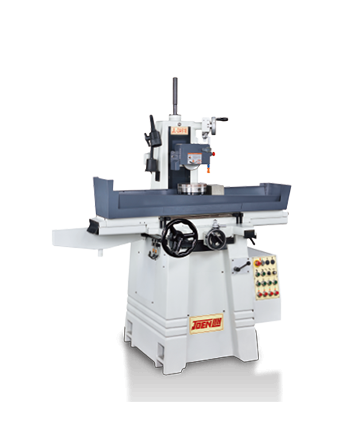

Semi-Automatic Surface Grinder(Saddle Series)
- Model:
- JL-618A/JL-2A618/JL-3A618/JL-818A/JL-2A818/JL-3A818/JL-2550AH/2550AHR/JL-3060AH/JL-4080AH/4080AHR
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
.tg{border-collapse:collapse;border-spacing:0;border-color:#ccc}.tg td{font-family:Arial,sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#ccc;color:#333;background-color:#fff}.tg th{font-family:Arial,sans-serif;font-size:14px;font-weight:400;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#fff;color:#333;background-color:#ccc}.tg .tg-0kcn{background-color:#9b9b9b;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-zs35{background-color:#efefef;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-2bev{border-color:#656565;text-align:left;vertical-align:top}.tg .tg-dsic{background-color:#fff;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-qs0d{background-color:#efefef;color:#000;border-color:#656565;text-align:left;vertical-align:top}td.tg-y698{background-color:#ebebeb;font-weight:700}td.tg-0pky{font-weight:700}td.tg-1{font-weight:100}
Model
618SA/2A618/3A618
818SA/2A818/3A818
3060AH
JL-2550AH / JL-2550AHR
JL-4080AH / JL-4080AHR
General Capaity
Table size(WxL)(mm)
150x465 (6"x1/8")
200x465 (8"x18")
300x648 (12"x25.5")
250x500 (10" x 20")
400x800(16"x32")
Max. Stroke(WxL)(mm)
175X372(7"x15.2")
205x472(8"x18.8")
380x680(15"x27")
270x550 (10.8" x22")
450x860 (18"x34.4")
Max. surface ground(mm)
150x465 (6"x18")
200x450 (8"x18")
300x600 (12"x24")
250x500 (10" x 20")
400x800(16"x32")
Max. distance from center of Spindle to table(mm)
450 mm(18")
450 mm(18")
600 mm(24")
500 mm(20") [optional height: 600mm (24")]
550 mm(22") [optional height: 650mm (26")]
Max. tableload(kgs) (kgs)
-
-
-
250
400
LongitudinalMovement
Table speed(infinite elevation)
3~25m/min(120"~1000"/min)
3~25m/min(120"~1000"/min)
5~23m/min(200"~920"/min)
5~25m/min (200"~1000"/min)
5~25m/min (200"~1000"/min)
Gudieway
V and flat way
V and flat way
V and flat way
V and flat way
V and flat way
Cross Movement
Auto cross feed increment approx.
0.1mm~5mm(2A)(0.004"~0.8")
0.1mm~5mm(2A)(0.004"~0.8")
0.1mm~5.5mm (0.004"~0.22")
Manual (H model), 0.1~12 (AH model)
0.5mm~20mm (0.02"~0.8")
Rapid power cross feed approx.(mm/min)
60Hz
1300(52")mm/min
1300(52")mm/min
1400(56")mm/min
1100(44")mm/min
1100(44")mm/min
50Hz
1100(44"")mm/min
1100(44"")mm/min
1200(48")mm/min
900(36")mm/min
900(36")mm/min
Hand wheel increment
1 revolution
5mm(0.1")
5mm(0.1")
5mm(0.1")
5mm(0.1")
5mm(0.1")
1 graduation
0.02mm(0.0005")
0.02mm(0.0005")
0.02mm(0.0005")
0.02mm(0.0005")
0.02mm(0.0005")
Cross micrometric feed (optional)
1 revolution
0.1mm(0.002")
0.1mm(0.002")
0.1mm(0.002")
0.1mm(0.002")
0.1mm(0.002")
1 graduation
0.001mm(0.00005")
0.001mm(0.00005")
0.001mm(0.00005")
0.001mm(0.00005")
0.001mm(0.00005")
WheelheadVertical Infeed
Grinding wheel Rapid feed
60HZ
180(7.2")mm/min(3A)
180(7.2")mm/min(3A)
AH 420(350)mm/min(16.8")(14")
550mm/min (22"/min)
260mm/min (10.4"/min)
50HZ
150(6")mm/min
150(6")mm/min
ATD 280(230)mm/min(11.2")(9.2")
450mm/min (18"/min)
220mm/min (8.8"/min)
Hand wheel increment
1 revolution
1mm(0.05")
1mm(0.05")
2mm(0.08")
2mm(0.08")
2mm(0.08")
1 graduation
0.005mm(0.00002")
0.005mm(0.00002")
0.01mm(0.0004")
0.01mm(0.0004")
0.01mm(0.0004")
Vertical micrometric feed (optional) 614M/618M
1 revolution
0.02mm(0.001")
0.02mm(0.001")
0.04mm(0.0016")
0.04mm(0.0016")
0.04mm(0.0016")
1 graduation
0.0005mm(0.00005")
0.0005mm(0.00005")
0.0005mm(0.00005")
0.001mm(0.00005")
0.001mm(0.00005")
Grinding Wheel
Spindle speed
60Hz(rpm)
3500R.P.M
3500R.P.M
1750R.P.M
3500R.P.M
1750R.P.M
50Hz(rpm)
2900 R.P.M
2900 R.P.M
1750 R.P.M
2900 R.P.M
1450 R.P.M
Dimension of the wheel
(ODxWxB) (mm)
180X13X31.75(7.2"X0.5"X1.25")
180X13X31.75(7.2"X0.5"X1.25")
355x37.5x127(14.2"x1.5"x 5")
180X13X31.75(7.2"X0.5"X1.25")
405x50x127 (16"x2"x5")
Motor
Spindle motor(HP*P)
1.5HPX2P
2HPx2P
5HPx4P
2HPx2P
5HPx4P
Hydraulic pump motor(HP)
1HPx6P
1HPx6P
2HPx6P
1HPx6P
2HPx6P
Auto crossfeed motor
5RK-40A-S(2A.3A)(ATD:DC10SP)
5RK-40A-S(2A.3A)(ATD:DC10SP)
1/5HPX6P
1/5HPX6P
1/5HPX6P
Rapid head elevation motor (vertical)
5RK-40A-S(2A.3A)(ATD:DC10SP)
5RK-40A-S(2A.3A)(ATD:DC10SP)
5RK-90A-S(AH),PK299-01A(ATD)
1/5HP (AHR)
1/5HP (AHR)
coolant pump(optional)
1/8HP
1/8HP
1/8HP
1/8HP
1/8HP
Sound pressure level
Sound pressure level dB(A)
Below 78dB(A)
Below 78dB(A)
Below 78dB(A)
Below 78dB(A)
Below 78dB(A)
Weight
Machine net weight/ Kgs(lbs)
1100(2420 lbs)
1280(2816 lbs)
2000(4400 lbs)
1350
3250
Packing weight/ Kgs(1bs)
1200(2640 lbs)
1380(3060 lbs)
2300(5060 lbs)
1550
3500
Size
Machine floor space
(LxWxH)(mm)
2300x1750(92"x70"))
2300x1750(92"x70"))
2600x2050(103"x81")
2650x1750(104"x72")
3000x2050(120"x81")
Packing size
(L×W×H)/cm
224x136x210(90"x55"x84")
224x136x210(90"x55"x84")
224x136x210(90"x55"x84")
212x146x200 (85"x58.4"x80")
276x228x225
