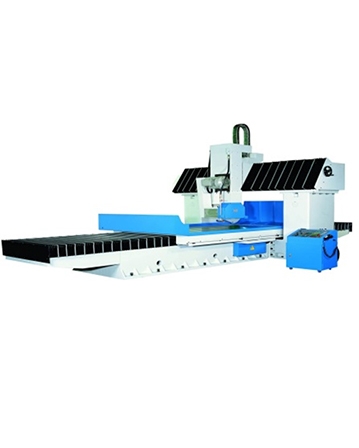

Fully Auto Surface Grinder(Double Column series)

Fully Auto Surface Grinder(Double Column series)

Model:
*JL-120200ATD/JL-120300ATD/JL-120400ATD/ *JL-120500ATD/ JL-120600ATD/JL-160200ATD/ *JL-160300ATD/JL-

Detail Specifications / Descriptions

.tg{border-collapse:collapse;border-spacing:0;border-color:#ccc}.tg td{font-family:Arial,sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#ccc;color:#333;background-color:#fff}.tg th{font-family:Arial,sans-serif;font-size:14px;font-weight:400;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#fff;color:#333;background-color:#ccc}.tg .tg-0kcn{background-color:#9b9b9b;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-zs35{background-color:#efefef;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-2bev{border-color:#656565;text-align:left;vertical-align:top}.tg .tg-dsic{background-color:#fff;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-qs0d{background-color:#efefef;color:#000;border-color:#656565;text-align:left;vertical-align:top}td.tg-y698{background-color:#ebebeb;font-weight:700}td.tg-0pky{font-weight:700}td.tg-1{font-weight:100}





Model
JL-160200ATD
JL-120200ATD
JL-120300ATD
JL-120400ATD
JL-120500ATD
JL-120600ATD
JL-160300ATD
JL-160400ATD
JL-160500ATD
JL-160600ATD


General Capaity


Table size(WxL)(mm)
1600*2000
1200*2000
1200*3000
1200*4000
1200*5000
1200*6000
1600*3000
1600*4000
1600*5000
1600*6000


Max. surface ground(mm)
1600*2000
1200*2000
1200*3000
1200*4000
1200*5000
1200*6000
1600*3000
1600*4000
1600*5000
1600*6000


Max. distance from center of Spindle to table(mm)
1000[Option Height:1200]
1000[Option Height:1200]
1000[Option Height:1200]
900[Option Height:1100]
900[Option Height:1100]
900[Option Height:1100]
1000[Option Height:1200]
900[Option Height:1100]
900[Option Height:1100]
900[Option Height:1100]


Max. tableload(kgs) (kgs)
6000
5200
6340
7600
8700
9880
7300
9000
10700
12400


LongitudinalMovement


Table speed(infinite elevation)
1~25
1~25
1~25
1~25
1~25
1~25
1~25
1~25
1~25
1~25


Gudieway
double V way
double V way
double V way
double V way
double V way
double V way
double V way
double V way
double V way
double V way


Cross Movement


Cross feed increment (approx.)(mm)
0.1~40
0.1~40
0.1~40
0.1~40
0.1~40
0.1~40
0.1~40
0.1~40
0.1~40
0.1~40


Cross rapid traverse rate(mm/min)
900
900
900
900
900
900
900
900
900
900


Cross hand wheel increment (mm)
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001


Vertical movement


Wheel seat rapid traverse (approx.) (optional) (mm/min)
300
300
300
300
300
300
300
300
300
300


Vertical hand wheel (mm)
0.001~0.999
0.001~0.999
0.001~0.999
0.001~0.999
0.001~0.999
0.001~0.999
0.001~0.999
0.001~0.999
0.001~0.999
0.001~0.999


Auto down feed (optional)(mm)
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001
(X1) 0.1 (X1) 0.001



Grinding Wheel


Grinding Wheel speed(R.P.M)
1100 R.P.M
1100 R.P.M
1100 R.P.M
1100 R.P.M
1100 R.P.M
1100 R.P.M
1100 R.P.M
1100 R.P.M
1100 R.P.M
1100 R.P.M


Dimension of the wheel


(ODxWxB) (mm)
508X50X203 (Max.508X76X203)
508X50X203 (Max.508X76X203)
508X50X203 (Max.508X76X203)
508X50X203 (Max.508X76X203)
508X50X203 (Max.508X76X203)
508X50X203 (Max.508X76X203)
508X50X203 (Max.508X76X203)
508X50X203 (Max.508X76X203)
508X50X203 (Max.508X76X203)
508X50X203 (Max.508X76X203)


Motor


Spindle motor(HP*P)
20[30-Optional]
20[30-Optional]
20[30-Optional]
20[30-Optional]
20[30-Optional]
20[30-Optional]
20[30-Optional]
20[30-Optional]
20[30-Optional]
20[30-Optional]


Hydraulic pump motor(HP)
15
15
15
20
20
25
15
20
20
25


Cross feed motor(HP)
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor


Vertical Rapid motor (optional)(HP)
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor
1KW AC Servo motor


Water pump (optional)(HP)
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2


Weight


Machine net weight/ Kgs(lbs)
23000
20000
24000
28500
33000
37500
28000
33000
38000
43000


Packing weight/ Kgs(1bs)
25500
20000
26300
31000
36000
41500
30800
36000
41500
48000


Size


Machine floor space


(LxWxH)(mm)
660*410*400
660*370*400
880*370*400
1100*370*400
1320*370*400
1540*370*400
880*410*400
1100*410*400
1320*410*400
1540*410*400


Packing size


(LxWxH)(mm)
40' HQX1
40' HQX1
40' HQ X1+ 20' X1
40' HQ X1+ 20' X1
40' HQ X 2
40' HQ X1+ 40' FR X1
40' HQ X1+ 20' X1
40' HQ X1+ 20' X1
40' HQ X 2
40' HQ X1+ 40' FR X1
