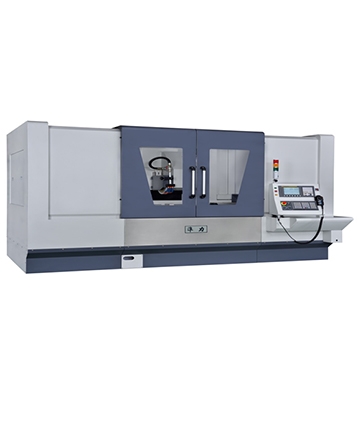

CNC Surface & Profile Grinder(Saddle series)

.tg{border-collapse:collapse;border-spacing:0;border-color:#ccc}.tg td{font-family:Arial,sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#ccc;color:#333;background-color:#fff}.tg th{font-family:Arial,sans-serif;font-size:14px;font-weight:400;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#fff;color:#333;background-color:#ccc}.tg .tg-0kcn{background-color:#9b9b9b;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-zs35{background-color:#efefef;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-2bev{border-color:#656565;text-align:left;vertical-align:top}.tg .tg-dsic{background-color:#fff;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-qs0d{background-color:#efefef;color:#000;border-color:#656565;text-align:left;vertical-align:top}td.tg-y698{background-color:#ebebeb;font-weight:700}td.tg-0pky{font-weight:700}td.tg-1{font-weight:100}





Model
JL-4080CNC-341(Longwise Grinding)


General Capaity


Table size (WxL)(mm)
400x800


Max. Stroke (WxL)(mm)
430x1100


Surface of Magnetic (WxL) (mm)
400x800


Max. distance from center of Spindle to table(mm)
650


Max. tableload (electro magnetic chuck is included)(Kgs)
800


Spindle


Servo motor(Kw)
11


Spindle speed (rpm)
11


Dimension of the wheel


(ODxWxB)(mm)
ø355 x 50 x ø127


X-LongitudinalMovement


Stroke(mm)
Z axis:430


driven system(mm)
Ball screw


Servo motor(Kw)
4


Speed(rpm)
10


Guildway
Linear guideway


Y-WheelheadVertical Infeed


Stroke(mm)
470


driven system(mm)
Ball screw


Servo motor(Kw)
4


Speed(rpm)
10


The Least Input Increment(mm)
0.001


軌道
Linear guideway


Z-Cross Movement


Stroke(mm)
Z axis:1100


driven system(mm)
Ball screw


Servo motor(Kw)
4


Speed(rpm)
20


Guildway
Linear guideway


Grinding Wheel dresser


Dimension of diamond roller (OD x W x B)(option)(mm)
ø100 x max.50 x ø52


Speed(rpm)
6000


Servo motor(Kw)
0.5


Weight


Machine net weight(Kgs)
9000


Space Size


Machine floor space(LxWxH)(mm)


(LxWxH)(mm)
3490 x 3260 x 2355


Packing size (L×W×H)(mm)


(LxWxH)(mm)
3700x2780x3050
