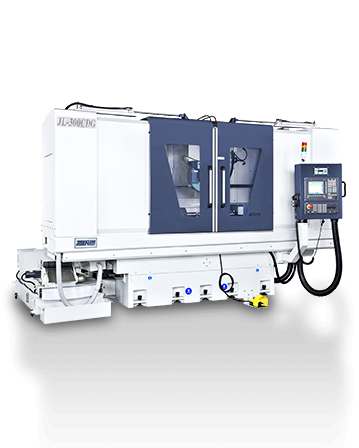

CNC Surface & Profile Grinder(Column series)

.tg{border-collapse:collapse;border-spacing:0;border-color:#ccc}.tg td{font-family:Arial,sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#ccc;color:#333;background-color:#fff}.tg th{font-family:Arial,sans-serif;font-size:14px;font-weight:400;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#fff;color:#333;background-color:#ccc}.tg .tg-0kcn{background-color:#9b9b9b;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-zs35{background-color:#efefef;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-2bev{border-color:#656565;text-align:left;vertical-align:top}.tg .tg-dsic{background-color:#fff;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-qs0d{background-color:#efefef;color:#000;border-color:#656565;text-align:left;vertical-align:top}td.tg-y698{background-color:#ebebeb;font-weight:700}td.tg-0pky{font-weight:700}td.tg-1{font-weight:100}





Model
JL-300 CDG


General Capaity


Table size (WxL)(mm)
500x1000


Max. Stroke (WxL)(mm)
550x1100


Max. distance from center of Spindle to table(mm)
730


Max. tableload (Kg)
1100 (including rotary table)



T slots (diameter*number)(mm*N)(*mm)
14*3


Spindle


motor(HP*P)
15Kw 1PH8133


Speed(rpm)
Max 8000/linear velocity<2000M/min


Dimension of the wheel


(ODxWxB)(mm)
Ø 405*50* Ø 127


CNC-320R + CNC-320R horizonal rotary + hydraulic


table diameter(mm)
Ø300


center height(mm)
210


tool specification
BT50


Max. table load(Kg)
85


The Least Input Increment
0.001


indexing precision
15”


repeatability accuracy
one way 4"/ double way 8"


brake torque(Kg.m)
142 (hydraulic20Kg/cm2)


Wheel dresser


Dimension of diamond roller (OD x W x B)(mm)
Ø150*20~30*Ø52


Servo motor power/speed(Kw)
0.82/1FK7042/3000rpm


LongitudinalMovement


Stroke(mm)
1100


all screw ( diameter*thread distance)(mm)
Ø40*25


Guildway
double V way


Servo motor
5.23/1FK7103/2000rpm


Table speed(mm/min)
0~25


The Least Input Increment(mm)
0.001


Cross Movement


Stroke(mm)
550


all screw ( diameter*thread distance)(mm)
Ø50*10


Guildway
55 type linear guideway


Servo motor
2.29/1FK7063/3000rpm


Table speed(mm/min)
8


Speed reduction ratio
0.1:0.3


The Least Input Increment(mm)
0.001


Weight


Machine net weight(Kgs)
10000


Packing Weight(Kg)
10700


Size


Machine dimension(LxWxH)(mm)


(LxWxH)(mm)
4225*2975*2558


Packing size (L×W×H)(mm)

s
(LxWxH)(mm)
4500*2290*2550
