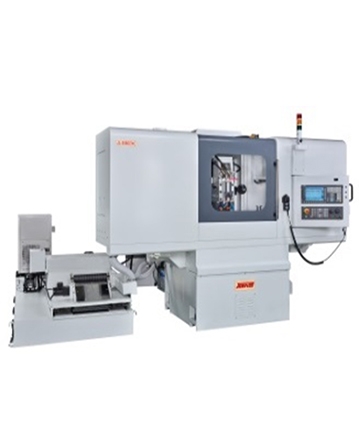

CNC Profile grinder for grinding Rail & Carriage(Carriage Grinding Machine)

.tg{border-collapse:collapse;border-spacing:0;border-color:#ccc}.tg td{font-family:Arial,sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#ccc;color:#333;background-color:#fff}.tg th{font-family:Arial,sans-serif;font-size:14px;font-weight:400;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#fff;color:#333;background-color:#ccc}.tg .tg-0kcn{background-color:#9b9b9b;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-zs35{background-color:#efefef;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-2bev{border-color:#656565;text-align:left;vertical-align:top}.tg .tg-dsic{background-color:#fff;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-qs0d{background-color:#efefef;color:#000;border-color:#656565;text-align:left;vertical-align:top}td.tg-y698{background-color:#ebebeb;font-weight:700}td.tg-0pky{font-weight:700}td.tg-1{font-weight:100}





Model
JL-3080CNC


General Capaity


Table size (WxL)(mm)
300x800


Max. Stroke (WxL)(mm)
320x860


Surface of Magnetic (WxL) (mm)
300*600


Distance from spindle to table(mm)
Min.115 ~ Max.455


Distance from spindle to table (Z axis)(mm)
-


Y1軸心至工作台邊(主軸斜20度)
-


Y2軸心至工作台邊(主軸斜20度)
-


Distance from magnetic chuck to table (mm)
-


Spindle


Number of spindles(mm)
1


Spindle type
Built-in type


outer diameter(mm)
ɸ120~ ɸ150


motor(Kw)
7 ~ 13


Spindle speed (rpm)
30000 ~ 120000


Dimension of the wheel


(ODxWxB))(mm)
Match spindle speed


LongitudinalMovement


Stroke(mm)
860


Servo motor(Kw)
2.5


Table speed(mm/min)
30


The Least Input Increment(mm)
0.001


Gudieway
Linear guideway


WheelheadVertical Infeed


Stroke(mm)
320


Servo motor(Kw)
1.6


Table speed(mm/min)
5


The Least Input Increment(mm)
0.001


Gudieway
Linear guideway


Cross Movement


Stroke(mm)
350


Servo motor(Kw)
1.6


Table speed(mm/min)
1


The Least Input Increment(mm)
0.001


Gudieway
Linear guideway


Grinding Wheel dresser


Dimension of the wheel (ODxWxB) (mm)
ɸ205*13*ɸ31.75


Max. Speed (rpm)
5000


Servo motor(Kw)
1


Horizontal secondary spindle


induction motor
1.5*2


Dimension of the wheel (ODxWxB) (mm)
ɸ205*13*ɸ31.75


Weight


Machine net weight(Kgs)
5000


Space


Machine floor space(mm)


(LxWxH)(mm)
2900*2200*2630
