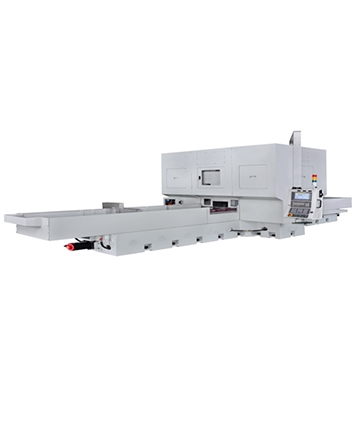

CNC Profile grinder for grinding Rail & Carriage(Carriage Grinding Machine)

.tg{border-collapse:collapse;border-spacing:0;border-color:#ccc}.tg td{font-family:Arial,sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#ccc;color:#333;background-color:#fff}.tg th{font-family:Arial,sans-serif;font-size:14px;font-weight:400;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#fff;color:#333;background-color:#ccc}.tg .tg-0kcn{background-color:#9b9b9b;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-zs35{background-color:#efefef;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-2bev{border-color:#656565;text-align:left;vertical-align:top}.tg .tg-dsic{background-color:#fff;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-qs0d{background-color:#efefef;color:#000;border-color:#656565;text-align:left;vertical-align:top}td.tg-y698{background-color:#ebebeb;font-weight:700}td.tg-0pky{font-weight:700}td.tg-1{font-weight:100}





Model
JL-2080CNC
JL-30200CNC


General Capaity


Table size (WxL)(mm)
230*1165
230*2250


Max. Stroke (WxL)(mm)
210*2100
400*3100


Surface of Magnetic (WxL) (mm)
80*1000
300*2000


Distance from spindle to table(mm)
-
-


Distance from spindle to table (Z axis)(mm)
Min.135 ~ Max.245
Min.50 ~ Max.220


Y1軸心至工作台邊(主軸斜20度)
Min.151 ~ Max.361
-


Y2軸心至工作台邊(主軸斜20度)
Min.138 ~ Max.348
-


Distance from magnetic chuck to table (mm)
170
110


Spindle


Number of spindles(mm)
2
2


Spindle type
Direct-drive type
Built-in type


outer diameter(mm)
-
ɸ120


motor(Kw)
2.25
10


Spindle speed (rpm)
1000 ~3600 (grinding wheel max. speed 33m/s)
40000


Dimension of the wheel


(ODxWxB))(mm)
ɸ 255*19*ɸ76.2
Match spindle speed


LongitudinalMovement


Stroke(mm)
2100
3100


Servo motor(Kw)
4
3.3


Table speed(mm/min)
25
25


The Least Input Increment(mm)
0.001
0.001


Gudieway
Linear guideway
Linear guideway


WheelheadVertical Infeed


Stroke(mm)
210
400


Servo motor(Kw)
1.6
1.57


Table speed(mm/min)
4.5
2.14


The Least Input Increment(mm)
0.001
0.001


Gudieway
Linear guideway
Linear guideway


Cross Movement


Stroke(mm)
110
170


Servo motor(Kw)
3
1.48


Table speed(mm/min)
4.5
5


The Least Input Increment(mm)
0.001
0.001


Gudieway
Linear guideway
Linear guideway


Grinding Wheel dresser


Dimension of the wheel (ODxWxB) (mm)
ɸ100* Max.80*ɸ52
ɸ102* Max.80*ɸ52


Max. Speed (rpm)
3000
6000


Servo motor(Kw)
1.6
1.57


Horizontal secondary spindle


induction motor
-
1.5*2


Dimension of the wheel (ODxWxB) (mm)
-
ɸ205*13*ɸ31.75


Weight


Machine net weight(Kgs)
14000
18000


Space


Machine floor space(mm)


(LxWxH)(mm)
8495*5200*2532
6320*2200*2462.2
