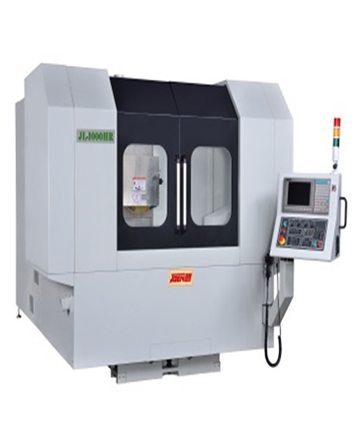

Rotary table series & Carriage(Nano Precision Hydrostatic CNC Grinder)

.tg{border-collapse:collapse;border-spacing:0;border-color:#ccc}.tg td{font-family:Arial,sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#ccc;color:#333;background-color:#fff}.tg th{font-family:Arial,sans-serif;font-size:14px;font-weight:400;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#fff;color:#333;background-color:#ccc}.tg .tg-0kcn{background-color:#9b9b9b;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-zs35{background-color:#efefef;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-2bev{border-color:#656565;text-align:left;vertical-align:top}.tg .tg-dsic{background-color:#fff;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-qs0d{background-color:#efefef;color:#000;border-color:#656565;text-align:left;vertical-align:top}td.tg-y698{background-color:#ebebeb;font-weight:700}td.tg-0pky{font-weight:700}td.tg-1{font-weight:100}





Model
JL-1000HR


General Capaity


Table size(mm)
ɸ1000


Max. grinding radius(mm)
510


Max. distance from center of Spindle to table(mm)
600


Surface of Magnetic(diameter * height)(mm)
ɸ1000*120


Max. tableload (Kg)
1100


Servo motor(Kw)
7.5


Spindle


Spindle motor(HP*P)
15*4P


Speed(rpm)
linear velocity<33M/s


Dimension of the wheel


(ODxWxB)(mm)
ɸ 405*50* ɸ 127


Y-WheelheadVertical Infeed


Stroke(mm)
470


Servo motor(Kw)
2


Table speed(mm/min)
750


The Least Input Increment(mm)
0.001


Guilday
Linear guideway


Z-Cross Movement


Stroke(mm)
710


Servo motor(Kw)
32


Table speed(mm/min)
1500 (60Hz)/1250 (50Hz)/2500 setvo


The Least Input Increment(mm)
0.001


guideway
double V way


horse power


total horse power (approx.)(HP)
50


Space


Machine dimension(LxWxH)(mm)


(LxWxH)(mm)
3550*4300*2400


Machine floor space(mm)


(LxWxH)(mm)
3550*4330


Machine dimension(LxWxH)(mm)


(LxWxH)(mm)
4500*2290*2550


Weight


Machine net weight(Kgs)
10000


Packing Weight(Kg)
10700
