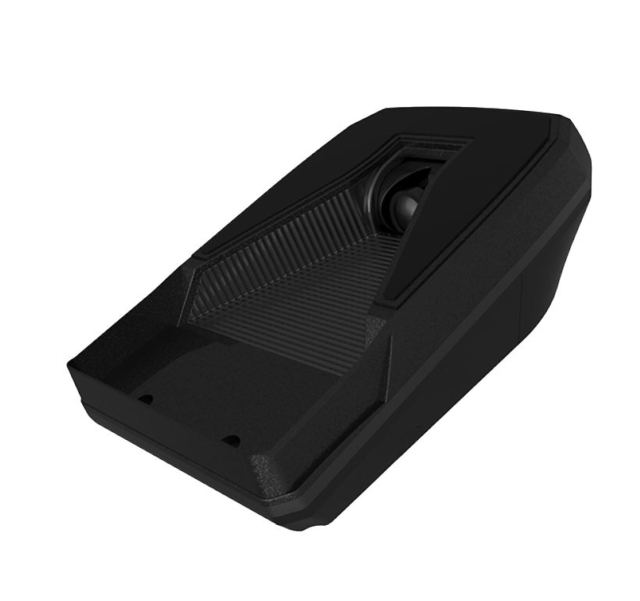

IVA-Integrated Vision ADAS unit generation
IVA-Integrated Vision ADAS unit generation

Model:IVA 影像辨識自動遠近燈切換系統 Country of Origin:Taiwan Material:PC+Aluminum Color:Black

Detail Specifications / Descriptions

Product specifications are as belw,

1. Host specifications
Model model: IVA integrated driving assistance system
Power input voltage / current specifications: DC12/24V 1A
Image input: 1280*720
Image output: CVBS (NTSC/PAL)
I/O interface: UART or RS232
Storage environment: 30~80% RH, -40°C ~ 95°C
Operating environment: 30~80% RH, -40°C ~ 95°C
Warning method: sound and lighting

2. Lens specifications
Lens module: 1/3" CMOS
Power input voltage / current specifications: DC 12V / 200mA
Output specification: 1280 (H) x 800 (V)
Frame rate: 30fps @ 720p
Image to quality ratio: 41 dB
Viewing angle: D53° *H42° *V32°
