Zero-point Chuck
Zero-point Chuck Hot

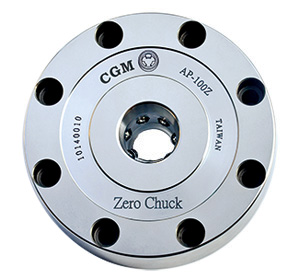

Model:AP-100Z Country of Origin:Taiwan

Detail Specifications / Descriptions

Characteristics

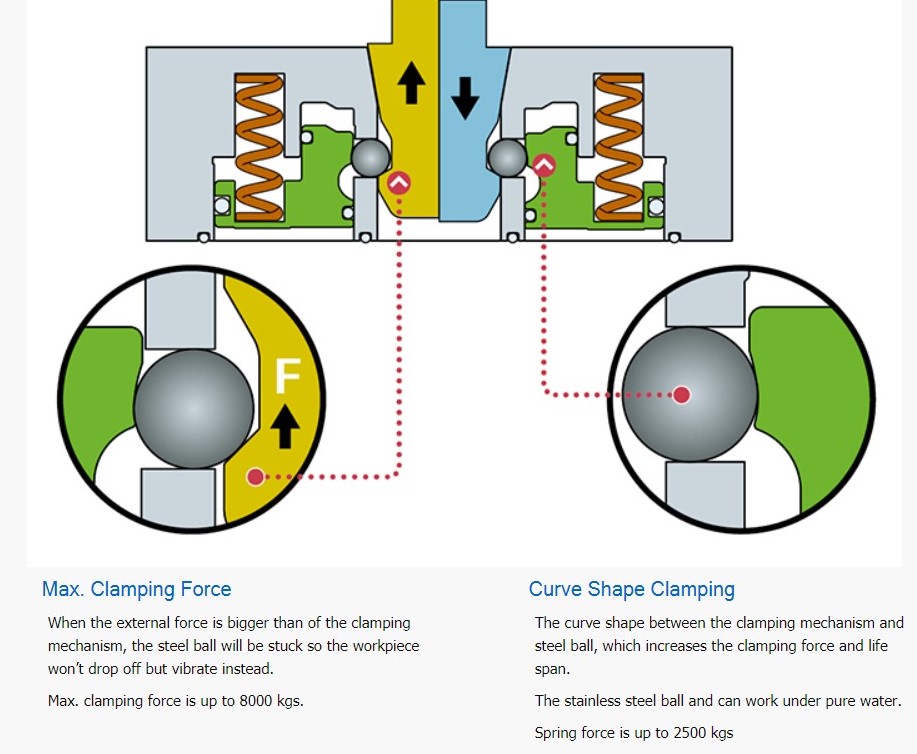

Max. clamping force is up to 8000kgs.
Main body, steel ball and accessories are made of stainless steel which can be used in the water. (excl. Spring)
With center hole cleaning and oiling functions (can work with pressure switch for testing)
Repeat positioning accuracy 0.005mm.
Spring force 2500kgs
Air pressure clamping force 3500kgs
Min. Air pressure 6kg/cm2
Material : SUS440, 56 HRC
Weight : 1.4 kgs

Zero-point Chuck
