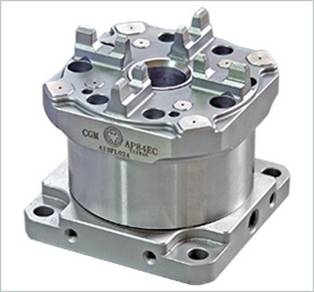

Fixing Plate for Milling & EDM Machines
Hot- Model:
- AP-84EC-13
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
With blowing holes for surface cleaning
With Center oiling function
Repeat positioning accuracy 2µm
Std. spring pull force 2500kg, Max. 6000kgs
Air pressure clamping force 3500kgs
Min. Air pressure : 6kg/cm²
This product is suitable for PE-20M and PE-20A
