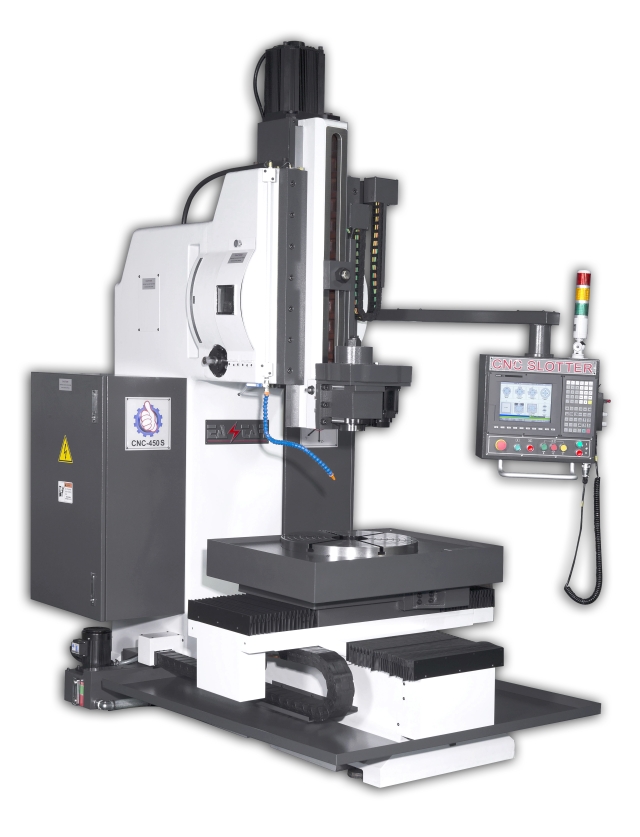

5 Axis CNC Slotter Machine
5 Axis CNC Slotter Machine

Model:CNC-450S

Detail Specifications / Descriptions

5 Axis CNC Slotter Machine (5 AXIS (X,Y,C,Z,A))

Machine features
1. The main machine structure is made of high quality cast iron, X,Y axis and Ram guideway are hardened and precision ground.
2. All the slideways,main Ram guideway,and X,Y,Z axis ballscrews are complete with automatic lubrication system to ensure the machine running smoothly and long life.
3. The swivel head can rotate right and left direction. to ensure optimal keyway parallelism, It’s also for helical cutting or taper keyway slotting purpose.
4. Use ultra-high load (Axial dynamic load up to 30 tons) high precision ballscrew for Z axis plus full-cycle lubrication system to ensure safe life of ballscrew running.
5. CNC-450 S model powered spindle head adopt precision AC servo motor drive 1:2 high precision gear set for high precision indexing accuracy, powerd spindle head use BT50 spindle match with two high accuracy ultra axial load tapered roller bearing to ensure enough heavy slotting force.
6. The X,Y,Z axis are complete with HIWIN high precision C3 class double nuts ballscrews and precision bearings specially for precision ballscrew to ensure position accuracy.

** For more details please visit our web site at https://www.keywaymaster.com.tw **
