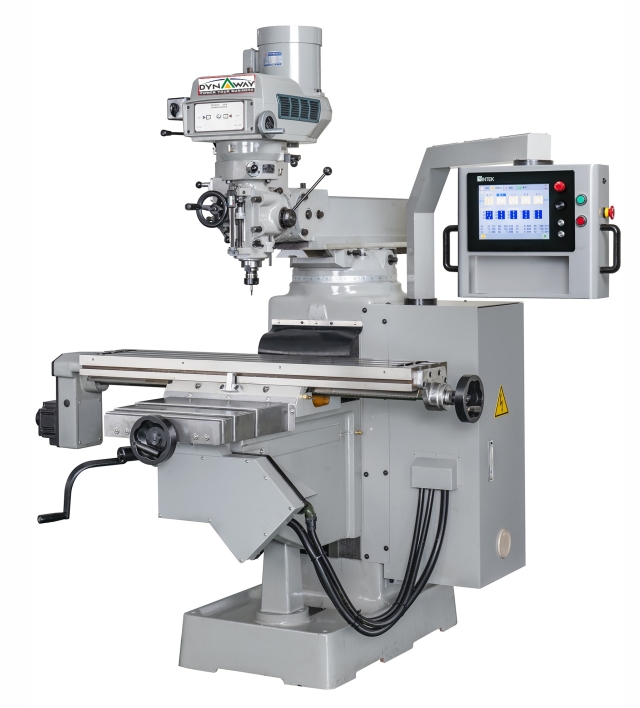

CNC Knee Type Milling Machine
CNC Knee Type Milling Machine Hot

Model:DM-3VS-CNC Milling Machine Country of Origin:Taiwan Material:Castings Color:Customized Color Available

Detail Specifications / Descriptions

Model: DM-3VS-CNC
Table dimension: 254 x 1270mm
Table T-slot(wide x no. x pitch): 16 x 3 x 63.5mm
X axis travel: 762mm
Y axis travel: 400mm
Z axis travel: 405mm
Spindle nose to table surface: 50~455mm
Spindle quill travel: 127mm
Spindle nose(BT/CAT): NST#30(R8)
Spindle quill diameter: 85.725mm
Main motor: 3HP(variable speed)
Spindle speed: 50~4500rpm
Rapid feedrate(X/Y): 7.5M/min.
Cutting feedrate(X/Y): 3M/min.
Axis motor(X/Y): 1/1kw
Coolant system: 350W
Lubrication system: 15W
Air pressure: 6kg/cm2(at least)
Machine weight: 1,550kgs
Floor space(L x W x H): 1800 x 2000 x 2100mm
CNC controller: INTEK M83 Series
NT#30 SPINDLE TAPER
SPINDLE SPEEDS---VARIABLE(Inverter)/10 SPEEDS
SPINDLE MOTOR---5HP(3.7kw)
TABLE SIZE---10” x 50”(254 x 1270mm)
HALOGEN WORK LIGHT
AUTO LUBRICATION SYSTEM
ELECTRIC CONTROL BOX
BALL SCREWS(C5 CLASS) ON X, Y AXIS
DRAW BAR-M16 THREADS
RUBBER CHIP COVER
TOOLS & TOOL BOX
OPERATION MANUAL
FLOOR SPACE(L x W x H)---2240x2470x2420mm
PACKING DIMENSION(L x W x H)---1730x1770x2000mm
MACHINE NET WEIGHT---1750KG
MACHINE GROSS WEIGHT---2050KG

CNC Knee Type Milling Machine
Company: DYNAWAY MACHINERY CO., LTD.
Address: (office) 5F NO. 146-29 SEC. 1 DONGSHAN RD. TAICHUNG CITY 40647 TAIWAN
Telephone: 886-4-2437-5196
Fax: 886-4-2437-5149
E-Mail:
URL: www.dynawaytech.com
www.cens.com/dynawaytech
