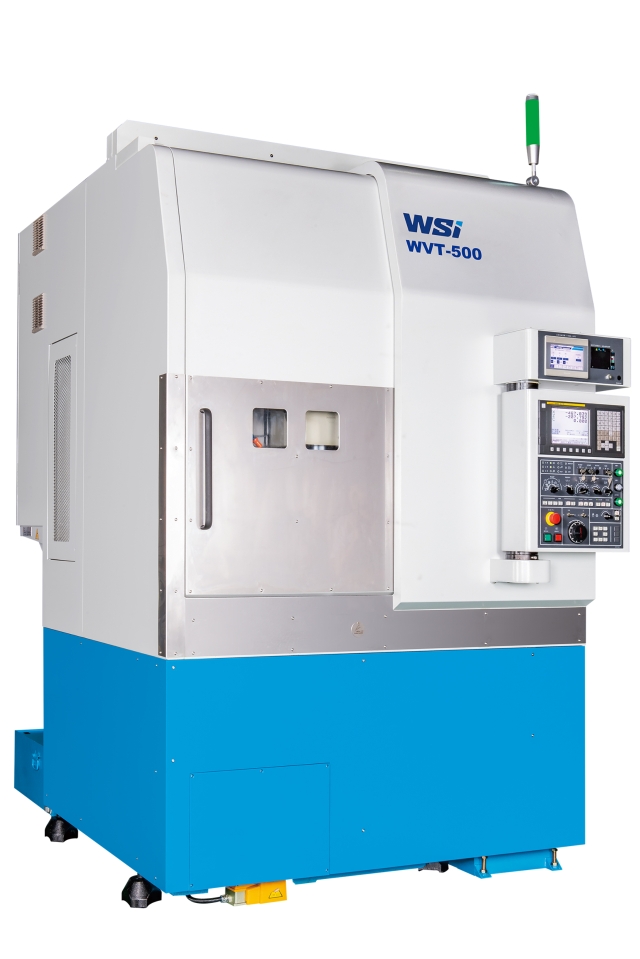

CNC Vertical Lathe
CNC Vertical Lathe Hot

Model:WVT-360/500/600 Country of Origin:Taiwan Color:Blue & White Color

Detail Specifications / Descriptions

MODEL: WVT-360 /WVT-500 /WVT-600

Capacity:
Max. swing diameter---Ø600mm /Ø620mm /Ø900mm
Max. turning diameter over cross slide---Ø490mm /Ø410mm /Ø600mm
Max. turning diameter--Ø600mm /Ø620mm /Ø600mm
Max. turning height---500mm /610mm /800mm

Spindle:
Max. spindle speed---3500rpm /1500(3000*)rpm /1200rpm
Inside dia. of spindle bearing---Ø130mm /Ø160mm /Ø220mm
Spindle nose---A2-8 /A2-11 /A2-11

Travel:
X-axis travel---315mm /325mm /450mm
Z-axis travel---500mm /650mm /800mm

Feedrate:
Rapid traverse on X-axis---18m(min.) /25m(min.) /16m(min.)
Rapid traverse on Z-axis---18m(min.) /32m(min.) /16m(min.)

Motor:
Spindle motor---11/15(Kw) 18.5/22(Kw) 18.5/22(Kw)
X-axis servo motor---1.8(Kw) 3(Kw) 2.1(Kw)
Z-axis servo motor---2.5(Kw) 7(Kw) 3.8(Kw)
Hydraulic pump motor---1.5(Kw) 1.5(Kw) 1.5(Kw)
Cutting fluid motor---1.1(Kw) 1.1(Kw) 1.1(Kw)

Turret:
Turret type---Hydraulic servo turret
No. of tools---12T /8T*(12T) /12T
O.D. tool size--□25mm /□25mm /□32mm
I.D. tool size---Ø40mm /Ø40mm /Ø60mm

Outline dimensions:
W x H x D---1600x2840x2740mm /1800x3160x3200mm /1800x3240x3200mm
Weight---5400kg /8150kg /11000kg

CNC Vertical Lathe
Company: DYNAWAY MACHINERY CO., LTD.
Address: (office) 5F NO. 146-29 SEC. 1 DONGSHAN RD. TAICHUNG CITY 40647 TAIWAN
Telephone: 886-4-2437-5196
Fax: 886-4-2437-5149
E-Mail:
URL: www.dynawaytech.com
www.cens.com/dynawaytech

Send inquiry to this company
