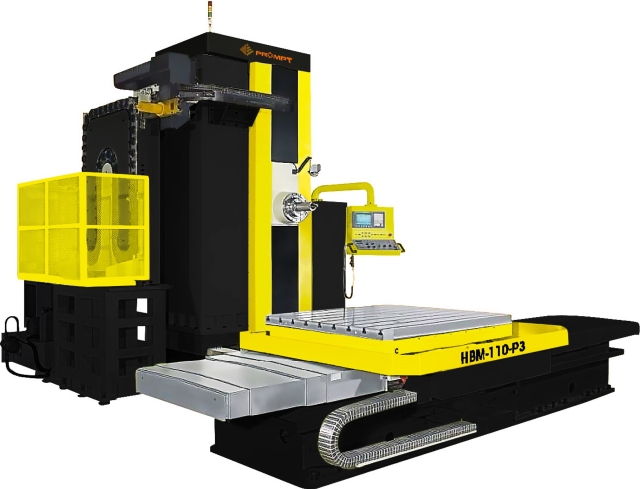

HORIZONTAL BORING & MILLING MACHINE

HORIZONTAL BORING & MILLING MACHINE

Model:
HBM-110-P2

Detail Specifications / Descriptions

Model HBM-110-P2
Spindle
Min Motor (30min/cont.) 22/26 kw
Speed (Max.) 2500 rpm
Tapper BT-50 / ISO 50
Diameter Ø110 mm
Max. Torque 1500 Nm
Travel
Work Table Travel X axis (Horizontal) 2000 mm
Spindle Travel Y axis (Vertical) 1800 mm
Column Moving Travel Z axis 1800
Spindle Travel W1 axis 500 mm
Rotary Table
Table Dimension 1440 x 1600 (op: 1600*1800) mm
T-Slot 24 x 9 mm
Max. table loading weight 8500 (max: 12000) kg
Lindes 0.001°
Max. Rotation Diameter 2480 mm
ATC
Tool Shank BT50
Max. Tool Diameter x Length 120/250 mm
Max. Tool Weight 25 kgs
Tool Change Time 16 sec.
Tool Clamping Farce 60±5 Nm
Capacity 60T pcs
Feed
Rapid Feed Rate XYZ axis: 10 mm/min
W axis: 6 mm/min
Specifications
Water Tank Capacity 500 L
Power Capacity 55 KVA
Air Pressure Require 6 kg/cm²
Machine Dimension 6500 x 7800 x 3000 mm
Machine N.W/ G.W 25000/28000 kg
Shipment Advice 40" x 2 container HQ
*Rotary table adopt Heidenhain encoder (Accuracy ±10")
* The above specifications subject to change without prior notice.

Standard Accessories
Fanuc - 0i MF Controller
Tools and Tool Box
Foundation Screws and Bolts
Spindle Oil Cooler
Working Lamp
ATC Chain Type 60 Tools (BHG 110 - T3/T3 only)
Spindle Support 250 mm (BHB 110 - T2/T3 Std only)
Linear Scale
X axis Dust Cover
Y axis Dust Cover
MPG (Manual Pause Generator)
Auto Lubrication System
Steel Belt Chip Conveyor with Cart
Transformer (Export only)
