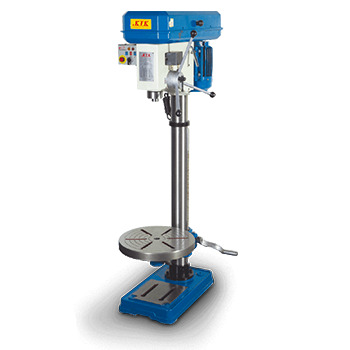

Manual Drilling / Tapping Machine

Manual Drilling / Tapping Machine

Model:
LGT-550b

Detail Specifications / Descriptions

ModelLGT-340BLGT-340ALGT-550BLGT-550ATB-340SB-550
Max. Drilling Capacity13mm16mm20mm25mmØ25 mmØ25 mm
Max. Tapping CapacityM10M12M18M20M 12M 20
Spindle TaperJT6MT2MT3MT3MT2MT 3
Spindle Travel80mm100mm120mm140mm80 mm120 mm
Spindle Speed520-2230240-2840230-1910230-1910180 mm230 mm
Number of Speed499999
Swing360mm360mm460mm460mm190-2800230-1910
Column Diameter80mm80mm92mm102mmØ80 mmØ92 mm
Table Diameter360mm360mm400mm420mm300 x 300 mm350 x 350 mm
Base Diameter 300x500mm300x500mm335x580mm380x600mm450 x 310 mm600 x 380 mm
Spindle to Table Distance 450mm450mm720mm630mm420 mm700 mm
Spindle to Base Distance 620mm620mm920mm930mm650 mm1250 mm
Motor1/2HP1HP2HP2HP0.75 kw1.5 kw
Overall Height1070mm1070mm1500mm1540mm1080 mm1800 mm
Weight75kg90kg140kg190kg80 kg180 kg
