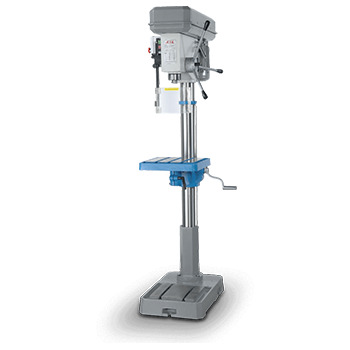

Manual Drilling Machine Square Table

Manual Drilling Machine Square Table

Model:
SB-25

Detail Specifications / Descriptions

ModelTB-16TB-18SB-18SB-25SB-32
Max. Drilling Capacity16mm18mm20mm25mm30mm
Spindle TaperMT2MT2 / MT3MT2 / MT3MT3MT4
Spindle Stroke80mm90mm90mm120mm140mm
Spindle to Column Distance180mm230mm
Quill FeedManualAutomaticManual
Number of Speed91249
Spindle Speed rpm190-2800230-3100480-1980230-1910230-1910
Diameter of Column80mm92mm102mm
Dimension of Table300x300mm350x350mm400x400mm
Dimension of Base450x310mm600x380mm600x380mm
Spindle to Table Distance 420mm485mm420mm720mm670mm
Spindle to Base Distance 650mm725mm620mm1250mm1250mm
Motor0.75kw1.1kw0.75kw1.5kw2.0kw
Overall Height1080mm1060mm1800mm
Weight70kg85kg100kg180kg210kg
