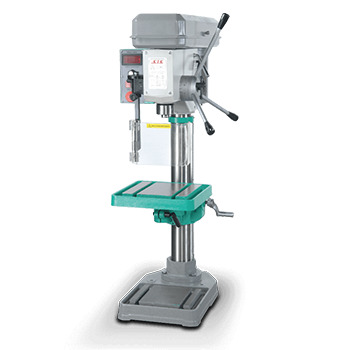

Variable Speed Drilling Machine

Variable Speed Drilling Machine

Model:
TB-18V

Detail Specifications / Descriptions

ModelTB-16VTB-18VTB-120VSB-25V
Max. Drilling Capacity16mmØ18 mmØ16 mmØ25 mm
Spindle TaperMT2MT 3
Spindle Stroke80mm90 mm120 mm
Spindle to Column Distance180mm230 mm
Number of SpeedVariable Speed
Spindle Speed rpm330-3400330-3400 260-1500
Diameter of Column80mmØ80 mmØ80 mmØ92 mm
Dimension of Table300x300mm350 x 350 mm
Dimension of Base450x310mm600 x 380 mm
Spindle to Table Distance 420mm485 mm420 mm720 mm
Spindle to Base Distance 650mm700 mm520 mm1250 mm
Motor0.75kw1.5 kw
Overall Height1060mm1080 mm1800 mm
Weight70kg85 kg100 kg180 kg
