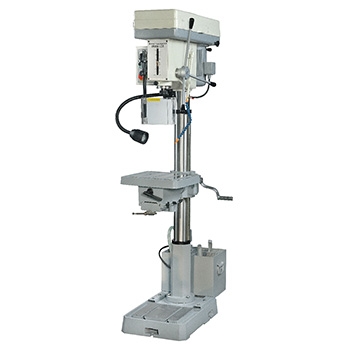

LM-20 Drilling & Tapping Machine

LM-20 Drilling & Tapping Machine

Model:
LM-25

Detail Specifications / Descriptions

ModelLM-20LM-25LM-30
Max. Drilling Capacity20mm25mm30mm
Max. Tapping CapacityM12M16M18
Spindle TaperMT2MT3MT4
Spindle Stroke90mm120mm140mm
Spindle Speed
(H)
(L)
233-3100 rpm
117-1550 rpm
233-1910 rpm
115-955 rpm
Column Diameter80mm92mm102mm
Spindle to Column180mm230mm
Table Diameter
(TS)
(TV)
300x300mm
300x300/4"vise
350x350mm
350x350/5"vise
400x400mm
400x400/5"vise
Spindle to Table175-710mm240-730mm180-650mm
Base Diameter320x520mm380x570mm
Motor Power0.375/0.75kw0.56/1.1kw0.75/1.5kw
Coolant0.125kw
LED Light24V
Overall Height1710mm1815mm1830mm
Weight120kgs200kgs230kgs
