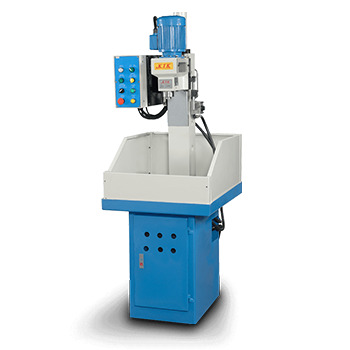

Linear Guide Hydraulic Drilling Machine

Linear Guide Hydraulic Drilling Machine

Model:
HL-16

Detail Specifications / Descriptions

ModelHL-16HL-25
Max.Drilling Capacity in steelØ16mmØ25mm
Spindle TaperMT2MT3
Spindle Travel200mm300mm
Head Vertical Travel200mm300mm
No. Of Spindle Speed33
Spindle Speed60HZ 710/1450/2860
50HZ 590/1200/2380
60HZ 510/1220/2000
50HZ 425/1010/1660
Square Column Diameter130x140x800mm180x200x950mm
Max. Distance Spindle To Table520mm550mm
Min. Distance Spindle To Table320mm250mm
Distance Spindle To Cloumn185mm245mm
Surface Of Table300x300mm300x450mm
Motor HP1HP2HP
Overall Dimension LxWxH800x630x720mm980x850x750mm
