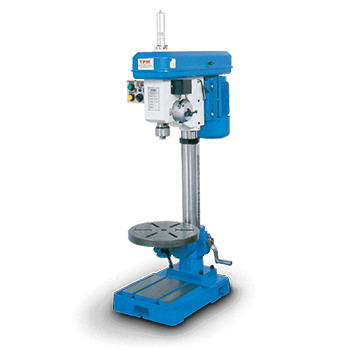

Lead-Screw Auto Tapping Machine

Lead-Screw Auto Tapping Machine

Model:
T-360

Detail Specifications / Descriptions

ModelT-360T-120T-140
Max. Tapping CapacityM12M20M30
Spindle TaperMT2MT3MT4
Spindle Travel100mm120mm150mm
Spindle Speed600.1000.1500100.200.300
Number of Speed33
Variable Speed-330-1330mm
Swing360mm460mm520mm
Column Diameter80mm102mm115mm
Table Diameter320mm600x800mm
Base Diameter 330x510mm-
Spindle to Table Distance 400mm350-700mm
Spindle to Base Distance 600mm-
Motor1HP2HP3HP
Overall Height1150mm2100mm
Weight100kg600kg700kg
