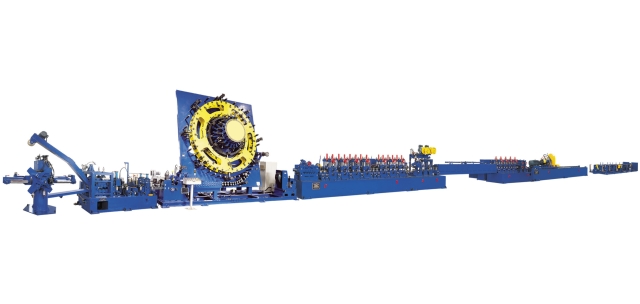

| This machine is specially designed for forming and high frequency welding of carbon steel tube under mass-production. Its main purpose is to increase the output, to upgrade the quality and to reduce the consumption. It is easy to operate, labor-saving, high safe to meet the requirement of high efficiency, low cost and high margin. |
| |
| Main parts of the machine: | ※ Optional accessories | - Uncoiler
- Hoop case
- 3-stage roller forming machine:a. Forming b. Welding c. Sizing
- Scraper for outside bead
- Auto cut-off unit
- Run out table
| - Hydraulic uncoiler
- Shear and welder
- NC servo control cutter
- Quick change system
| |
| |
| Model | Dimension | Wall Thickness | Machine Speed | Vector Motor | | JWHF-B-45S | Ø12.7mm - ø38.1mm | 0.6mm - 2.0mm | 60- 120 M/min | AC 40HP x 2 | | JWHF-B-60S | Ø25.4mm - ø76.2mm | 0.7mm - 3.0mm | 50 - 120 M/min | AC 100HP x 2 | | JWHF-B-60 | Ø21.34mm - ø60.33mm | 1.6mm - 4.0mm | 40 - 100 M/min | AC 100HP x 2 | | JWHF-B-80S | Ø38.1mm - ø101.3mm | 1.0mm - 4.0mm | 35 - 80 M/min | AC 125HP x 2 | | JWHF-B-80 | Ø42.16mm - ø88.9mm | 2.0mm - 5.5mm | 30 - 70 M/min | AC 125HP x 2 | | JWHF-B-100 | Ø76.2mm - ø168.23mm | 2.0mm - 7.1mm | 10 - 50 M/min | AC 150HP x 2 | | JWHF-B-120 | Ø114.32mm - ø219.08mm | 2.5mm - 8.2mm | 9 - 36 M/min | AC 150HP x 2 | | JWHF-B-150 | Ø114.3mm - ø323.35mm | 2.5mm - 9.5mm | 5 - 20 M/min | AC 150HP x 2 |
|
