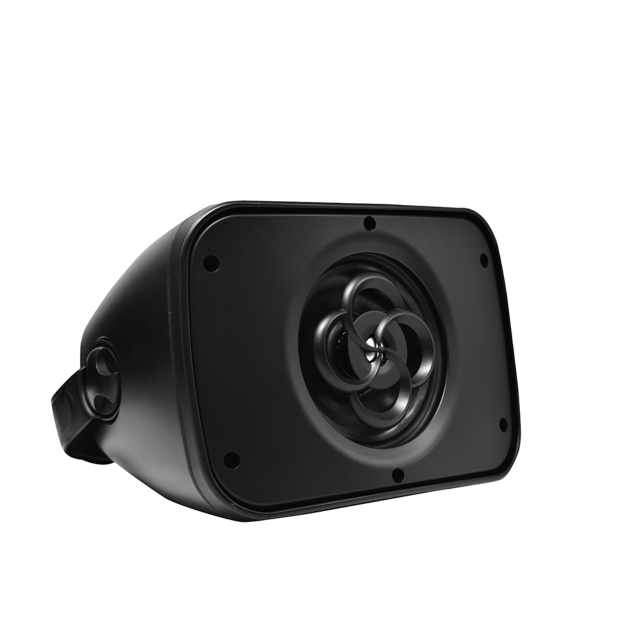

XSpira Advance IP66 waterproof wall mount coaxial speaker
- Model:
- DC-03-M5/M6/M8
- Country of Origin:
- China
- Material:
- ABS
- Color:
- Black/White
Detail Specifications / Descriptions
Tweeter：0.75" (20 mm)｜0.75" (20 mm)｜1" (25 mm) Aluminum dome
Woofer︰5" (125 mm)｜6.5" (165 mm) ｜8" (203 mm) PP Cone, Rubber Surround
Coaxial Speaker：5" Coaxial｜6" Coaxial | 8" Coaxial
Frequency Range±3︰95 Hz-20k Hz │90 Hz-20k Hz │ 45 Hz-20k Hz
Power Handing RMS︰60 W program, 30 W (IEEE 219 ) │ 80 W program ,40 W (IEEE 219 ) │100 W program ,50 W (IEEE 219 )
Sensitivity︰86dB | 87dB | 86dB
Impedance︰8Ω
Taps︰8Ω,100V/30W, 15W,7.5W,3.75W │ 8Ω,100V/40W,20W, 10W,5W │ 8Ω,100V/50W, 25W,12. 5W,6.25W
Termination︰Standard pressed connector
Attachment︰Brackets, Grille
Dimensions (H*W*D)︰275mm x 170mm x 168mm │ 285mm x 200mm x 195mm │ 380mm x 249mm x 280mm
Certifications︰IP66
Housing Material︰ABS
