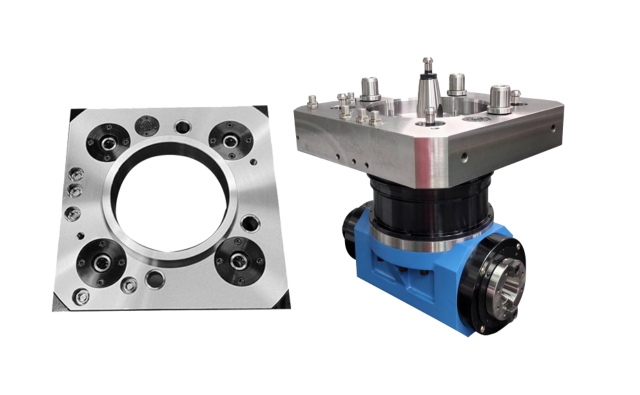

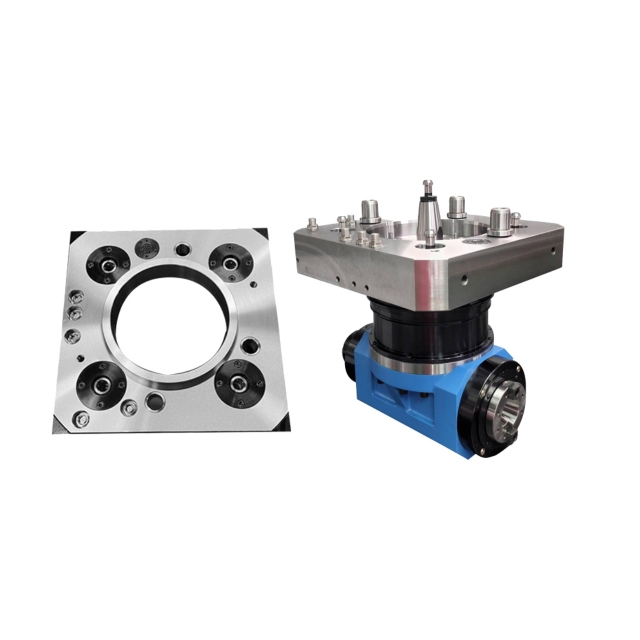

N80B Automatic Exchange of Right Angle Milling Heads

N80B Automatic Exchange of Right Angle Milling Heads

Hot
Model:
N80B
Country of Origin:
Taiwan

Detail Specifications / Descriptions

GONG YANG N80B automatic right angle milling head with boring function, ideal for double column milling machines. Offers high-rigidity positioning and fast hydraulic head exchange for greater efficiency and precision.

Features
1. Economically transform the mechanical vertical milling process to make one machine a multi-purpose angular milling head.
2. This angular milling head is small and exquisite, easy to operate, and suitable for the processing of complex parts.
3. By installing a dial, the angle can be adjusted 360° to select the milling direction of the milling cutter.
4. Suitable for boring and milling inside slots, end face finishing, chamfering and other processing tasks.
5. Spindle and gears are made of chrome-molybdenum alloy steel and undergo special carburizing heat treatment to ensure durability.
6. The bearing adopts ball bearing, which is suitable for high speed and light cutting.
7. This angular head is only suitable for tapping and column pitting operations when reverse processing. It cannot be used for cutting, drilling and other processing operations to avoid mechanical damage.
8. This angular milling head adopts hydraulic lock and retraction, and the tool holder uses BT specification.

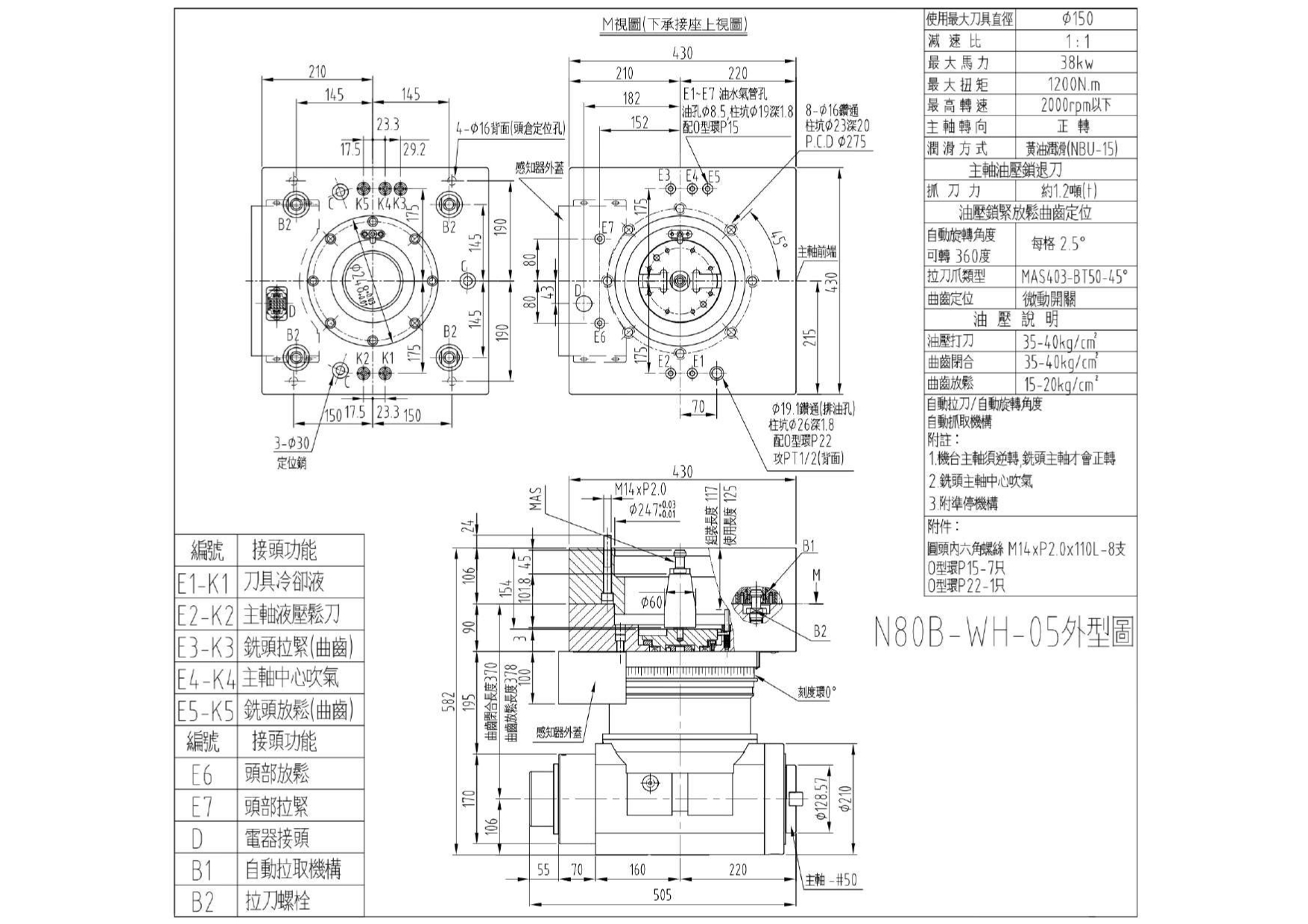

Specifications
Type Max Cutter Dia Reduction Ratio Max Power Max Torque Max Revlving Main Spindle Steering Type of Grease
N80B ψ150 01:01 38KW 1200N.m 2000rpm Right Turn Grease (NBU-15)


Application
