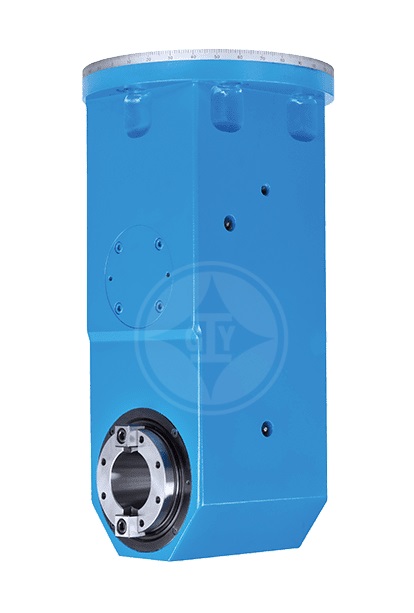

N73, N74 Deep Boring Right Angle Milling Head
- Model:
- N73, N74
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Features
Angular Head Characteristics:1. Could change machine to make vertical milling and cross milling.
2. Fit a spiral bevel gear, the machine more precise and wear resistant.
3. Volume is small, convenient operation, suitable to make complex of machine tools.
4. Loosen “t” screw and you can make 360° adjusting to choose the direction of milling tool.
5. Suitable to planer for boring, cutting top face and bevel face trim.
6. There is graduated ring so we can very easy to choice the directions and adjusting.
7. Gear and spindle are made of chromium molybdenum alloy steel, through quenching and precise grinding.
8. Bearing is tapered roller bearing, suitable for low-speed cutting.

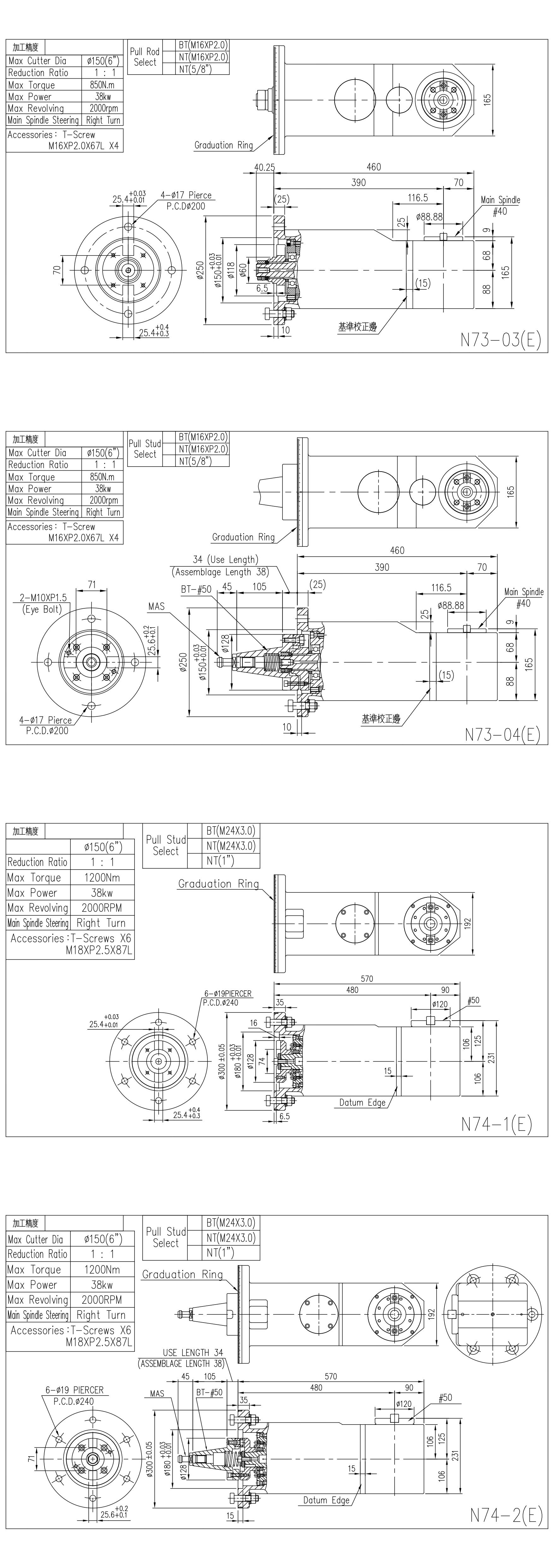

specifications
| TYPE | Max Tool Dia. | Reduction Ratio | Max Torque | Max Horsepower | Max Use Speed | Spindle Steering | Accessory |
|---|---|---|---|---|---|---|---|
| N73 | ψ150 | 1:1 | 38KW | 850N.m | 2000rpm | #40/Forward | M16×P2.0×67L-4Pieces |
| N74 | ψ150 | 1:1 | 38KW | 1200N.m | 2000rpm | #50/Forward | M18×P2.5×87L-6Pieces |
Application
More specifications (PDF)
