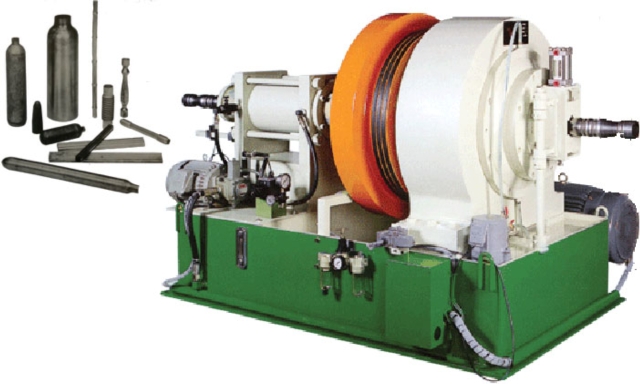

High Precision Double Rotation Rotary Swaging Machine

Machine Features:
1. Double rotation
(Outer ring and main shaft rotate in opposite directions)
2. Variable stroke length
3. Variable frequency (Rotating speed can vary)
4. CNC controls
Typical Applications
1. Tubes and bars
2. Circular sections
3. Non-circular sections
4. Close tolerances
Industry:
1. Auto
2. Bicycle
3. Aerospace
4. Construction / Decoration
Options:
1. Mandrel
2. Sound enclosure
3. Tooling
4. Feeding systems
5. Hydraulic / spring opening of dies
ModelYL 30YL 40YL 50No of Dies2/42/42/4Die Dimensions30x35x7540x45x10055x60x125Swaging Range: - Tubes2.0-20mm3.0-30mm4.0-40mm- Bars2.0-16mm3.0-20mm4.0-25mm
