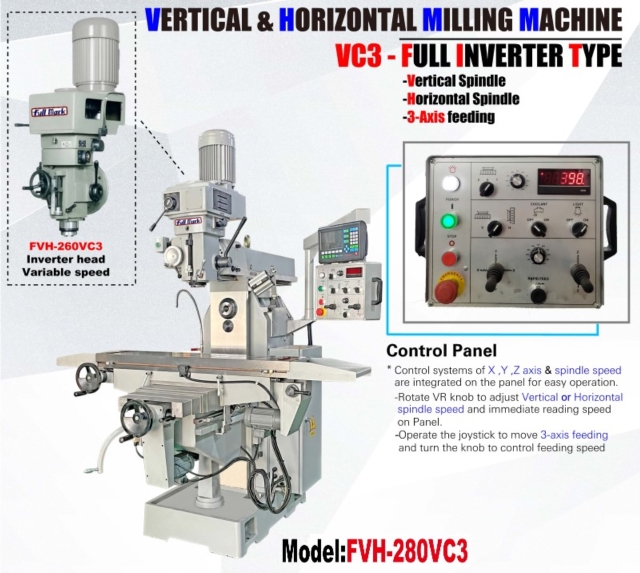

[Full Inverter Type ]Vertical / Horizontal Turret Milling Machine

Control Panel
◆ Control systems of X ,Y ,Z axis & spindle speed are integrated on the panel for easy operation.
-Rotate VR knob to adjust Vertical or Horizontal spindle speed and immediate reading speed on Panel.
-Operate the joystick to move 3-axis feeding and turn the knob to control feeding speed

FEATURES
◆Hardened and ground square slideways on Y & Z axes and coated with Turcite-B to reduce the friction coefficient of the contact face, it guarantee the accuracy and wear resistance.
◆Long wide Work Table: 1370x300mm, Thickness of Table: 84mm avoid deformed.
The wider saddle: 1110mm can fully support Table for stable movement in all directions, it ensures minimum overhang , deformation and guarantee extremely cutting accuracy & efficiency.
◆The spindle shaft is made of molybdenum Steel (SCM21) for smooth operation and assures great rigidity & shock resistance.
◆Precision Ball screws are employed on X.Y. axes to supply smooth movement during operation and achieve best positioned control and low backlash.
◆Horizontal milling equipment comes with "arbor bracket" to enhance the cutting rigidity.
◆The specification of FVH-260VC3 & FVH-280VC3 are identical except for the head assembly
