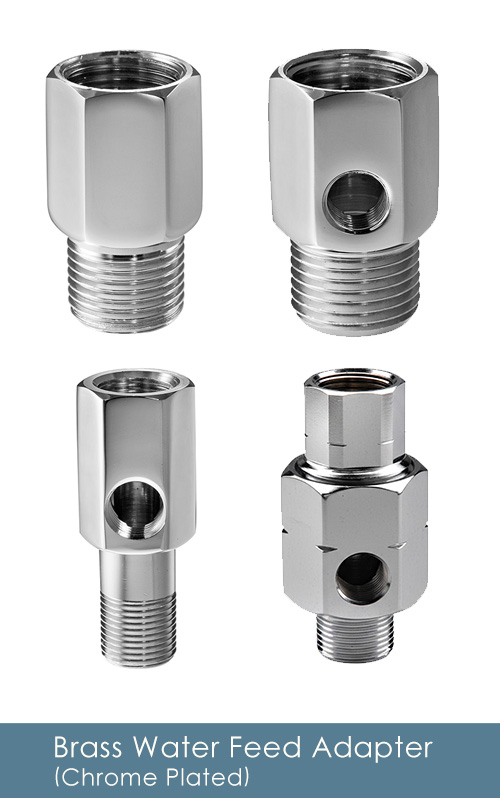

Brass Water Feed Adapter (Chrome Plated)
- Model:
- WFA-01/WFA-02/WFA-03/WFA-04/WFA-05/WFA-06/WFA-07
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Models & Specifications :
WFA-01 — 1/2" MIP × 1/2" FIP, L = 42 mm (without 1/4" port)
WFA-02 — 3/4" MIP × 3/4" FIP, L = 36 mm (without 1/4" port)
WFA-03 — 1/2" MIP × 1/2" FIP, L = 62 mm (without 1/4" port)
WFA-04 — 3/4" FIP, L = 32 mm(with 1/4" port, for 11-gallon R.O. pressure tank)
WFA-05 — 1/2" MIP × 1/2" FIP, L = 42 mm (with 1/4" port)
WFA-06 — 3/4" MIP × 3/4" FIP, L = 36 mm (with 1/4" port)
WFA-07 — 1/2" MIP × 1/2" FIP, L = 62 mm (with 1/4" port)
WFA-09 — 1/2" MIP, L = 55 mm (with 1/4" port)
WFA-10 — 3/8" MIP × 3/8" FIP, L = 62 mm (with 1/4" port)
WFA-11 — 1/2" MIP × 1/2" FIP, L = 42 mm (with 1/8" port)
WFA-13 — 3/8" MIP × 3/8" FIP, L = 42 mm (with 1/8" port)
WFA-22N — 1/2" NPS (F) × 9/16"-24 UNF (M), L = 36.5 mm(with 1/8" NPT port)
