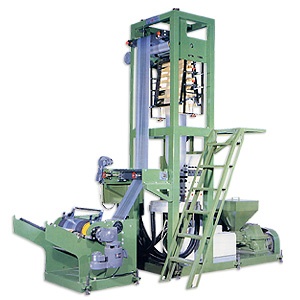

HDPE / LDPE / LLDPE High speed mini type inflation machine LC-HB series

HDPE / LDPE / LLDPE High speed mini type inflation machine LC-HB series

Model:
LC-HB35,40,4

Detail Specifications / Descriptions

MODEL NO: LC-HB35 LC-HB40 LC-HB45
PRODUCTION HDPE & LDPE
Thickness of Film 0. 008-0. 1mm 0. 08-0. 1mm 0. 08-0. 1mm
Width of Film ( Max. ) 300mm 400mm 500mm
Output (Max. ) HDPE 21kgs/hr,
LDPE 30 kgs/hr HDPE 26kgs/hr,
LDPE 36 kgs/hr HDPE 36kgs/hr,
LDPE 45 kgs/hr
EXTRUDER
Screw Dia 35mm 40mm 45mm
L/D Ratio 26/1 26/1 26/1
Screw& Barrel Material Sacm 645 with Polished & Nitrided Treatment
Heat Zone of Barrel 2 points
Barrel Heat Capacity 6. 4kw
Main Driving Motor 10 HP vs 15 HP vs 20 HP vs
Screw R. P. M. 0-120
Barrel Cooling Air cooling system

Company: FU YIR MACHINERY CO., LTD.
