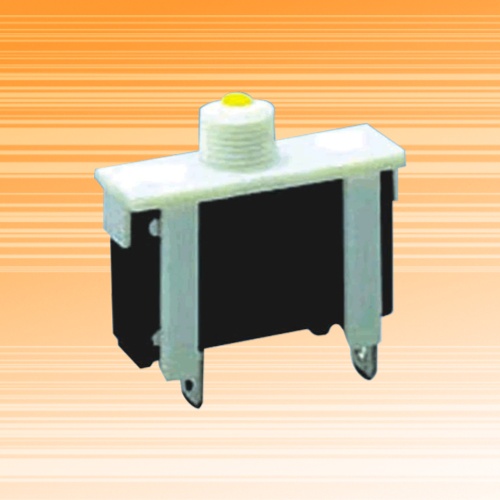

91L Series
Detail Specifications / Descriptions
Specification：
Rating:1 — 10Amp.
Input Power: 125/250Vac 50Vdc 50-60Hz. Interrupting Capacity:1, 000Amp×125Vac
20Amp×250Vac.
Dielectric Strength: 1,500Vac 1 minute. Resettable Overload Capacity: 6 times rated current.
Voltage Drop: Less than 0.25V.
Insuiation Resistance: >500 Meagaohms.
Reset Time: Push to Reset (Within 20 seconds)Temperature Rise at Terminal
Black: Less than 65 ℃ at 100% of rated current applied continuously at 25℃.
Contact Endurance: 125Vac×150% of rated current >500 Cycles.
Calibration (at 25℃)
100%of rated current: hold,No-Trip
150%of rated current: Trip in one Hour
200%of rated current: 3-30seconds Trip
300% of rated current: 0.5-4.0 seconds Trip
