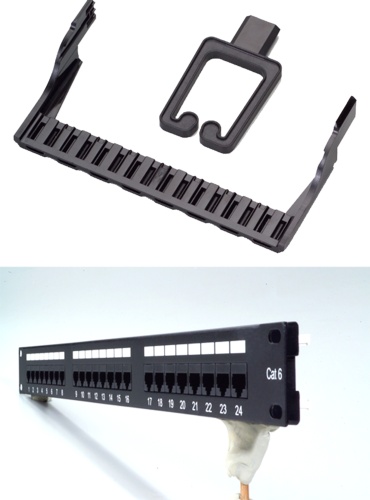

24 Ports UTP Cat.5e Patch Panel / 24 Ports UTP Cat.6 Patch Panel
24 Ports UTP Cat.5e Patch Panel / 24 Ports UTP Cat.6 Patch Panel

Model:PL-1248E-C5EABL / PL-1248E-C6ABL

Detail Specifications / Descriptions

1.Wiring : T568A or T568B
2.Inserting Loss : 750 cycles min
3.Housing : High impact UL94V-0 rated thermoplastic
4.IDC Blocks : Tin lead plated connector accepts 22 – 26 AWG solid UTP cable
5.Contact Pressure : 100gms min
6.insulation Resistance : 500megaohms min
7.Contact Resistance : 100milliohms max
8.Voltage / Current : 140VDC@1.5amps max
9.Dielectric Withstand : 1000VAC RMS@60Hz min
10. Comply with Part 68 , FCC rules
11.Comply with TIA / EIA Category 6 specifications

RJ45 jack with your choice of Krone Style IDC , Dual style IDC(designed to use a standard 110
punch down tool or a Krone tool for termination) or 110AT&T style IDC., Cat.5e accepts 24 -26
AWG solid wires. Cat.6 accepts 23 AWG solid wires Designed and tested to meet ANSI / TINEIA
Enhanced Category 5 (Cat.5e) / ISO / IEC 11801 Class D+ and Category 6 (Cat.6) / ISO / IEC
11801 Class E Gigabit data transmission requirements. Unshielded , Half-shielded versions are
