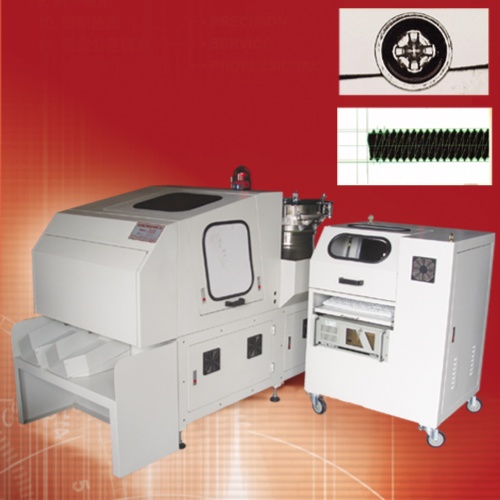

Inspecting/Measuring Instrument and Parts

Inspecting/Measuring Instrument and Parts

Detail Specifications / Descriptions

Inspection/detection:
1. Electroplating
2. Tolerance of screw/bolt-head diameter
3. Tolerance of screw/bolt head thickness
4. With/without pinhole; or pinhole clogged
5. Tolerance of full thread diameter
6. Pinhole eccentricity
7. Crack in screw/bolt head
8. Tolerance of screw/bolt diameter
9. Angle error of yhread
10. Pitches
11. Tolerance of screw/bolt length
12. Roundness of screw/bolt head
13. Effective diameter of screw/bolt
14. Specific detections/inspections

Specifications: (L) 1850mm x (W)
1230mm x (H) 1500mm
Weight: 950kg
Voltage: Three phase, 220V, 50/60Hz
Speed: 500pcs/min
Air pressure: 3. 5-5kg
Capacity: Diameter: 2. 5~8mm
Length: 6-70mm
