TONGTAI MACHINE & TOOL CO., LTD.

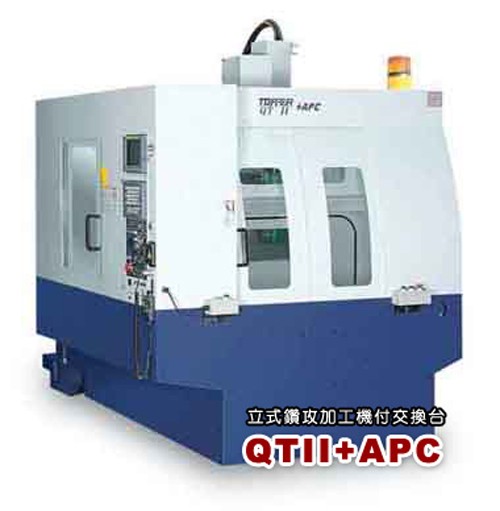

CNC TAPPING & MILLING CENTER WITH AUTO PALLET CHANGER
CNC TAPPING & MILLING CENTER WITH AUTO PALLET CHANGER

Model:TMV-510T+APC(QT-Ⅱ+APC)

Detail Specifications / Descriptions

ITEM SPECIFICATION UNIT TMV-510T+APC(QT-Ⅱ+APC)
PALLET Working Area(LxW) mm 600×360
Max. Table Load kgs 200×2
Table Height mm 920
SPINDLE Spindle Nose   7/24 No. 30
Spindle Speed rpm 240-8000
360-12000(360-15000)
TRAVEL X/Y/Z Axis mm 510×360×300
Spindle Nose to Table mm 200-500
FEED X/Y/Z Rapid Traverse M/min 40/40/48
Cutting Feed mm/min 1-10000(1-15000)
ATC Tool Capacity pcs 20
Max. Tool Dia mm 68
Max. Tool Length mm 200
Max. Tool Weight kgs 3
MOTOR Spindle Motor(50%ED) kw 5. 5(3. 7)
X/Y/Z Servo Motor kw 1. 6/1. 6/1. 6
Coolant Motor kw 0. 185
DIMEN-SION Length mm 1900
Width mm 2930
Height mm 2450
Weight kgs 4600
