Model:ETH-400 / 600 / 650 / 1000 / 1500 / 2000 Country of Origin:Taiwan

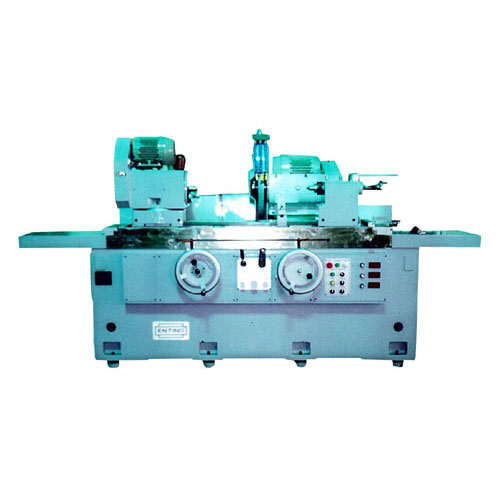

This machine body adopts a high grade Meehanite cast iron and wide rail/distance design; the high rigidity structure ensures stable movement, excellent precision, and long working life.
Allows (-3~8°~+/-12°) angle adjustments. In line with the use of measuring table, it can conduct precision rake grinding. The working table and saddle use an enforcing oil submerged lubrication design that ensures low wear, smooth feeding, good precision, and long working life.
Dressing Wheel Head:
The wheel spindle adopts hydraulic bearing to ensure long use, high cutting efficiency and stable precision; excellent working piece roughness and true roundness. The wheel is unable to get started if the pressure reaches below the pre-setting volume, a control design to enhance the working life of spindle.
Variable speed change and high torque; suitable for big and small diameter working piece grinding. (-40°~ +90°) rotating adjusting are available. It can also conduct both ejector pin rotating and fixing uses, upgrading the working efficiency.
The holding of tail is adjustable by the use of knob in the forehead. The broad type design makes stable holding and allows 40mm flexibility. A hydraulic automatic design is also available for the convenient use.
|Company:||ENTING PRECISION MACHINES TECHNOLOGY CO., LTD.|
