VERTICAL MACHINING CENTER
VERTICAL MACHINING CENTER

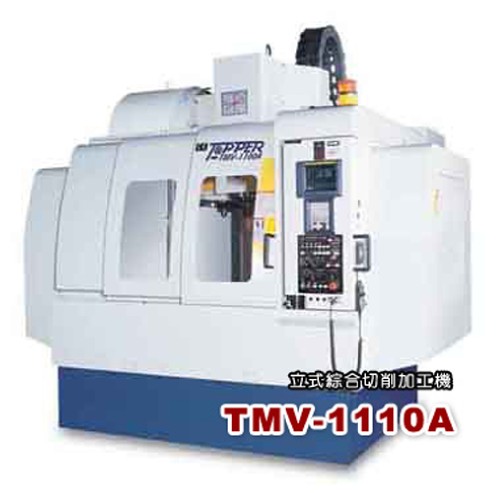

Model:TMV-1100(A)

Detail Specifications / Descriptions

ITEM SPECIFICATION UNIT TMV-1100 TMV-1100A
TABLE Working Area(LxW) mm 1200×510 1200×600
Max. Table Load kgs 800 500
Table Height mm 900 900
T-Slots (Size x No. ) mm 18×5 18×5
SPINDLE Spindle Nose   7/24 No. 40/No. 50(OPT)
Spindle Speed rpm (S)50-5000(OPT)70-7000/(OPT)48-3500/(OPT)60-6000(BT50)
TRAVEL X/Y/Z Axis Stroke mm 1100×530×530 1100×600×530
Spindle Nose to Table mm 250-780/200-730(BT50) 100-630
FEED X/Y/Z Rapid Traverse M/min 24/24/20 30/30/24
Cutting Feed mm/min 1-5000 1-5000
ATC Tool Capacity pcs 24/20(BT50) 24/20(BT50)
Max. Tool Dia mm 95/125 95/125
Max. Tool Length mm 250/300 250/300
Max. Weight kgs 8/15 7/15
MOTOR Spindle Motor(60%ED) kw 11/15 11/15
X/Y/Z Servo Motor kw 3. 0/3. 0/7. 0 3. 0/3. 0/7. 0
Coolant Motor kw 0. 37x2 0. 37
Hydraulic Motor kw 2. 25(OPT) 2. 25(OPT)
DIMEN-SION Length mm 3100 2800
Width mm 2350 2670
Height mm 2945 2918
Weight kgs 7000 8000
