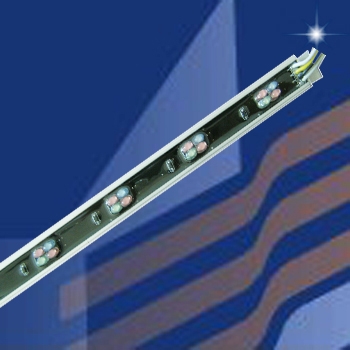

Pixel Control Aluminum Strip
- Model:
- RSF5P50019RGB48LT
Detail Specifications / Descriptions
Color: Full color
LED type Ping-ellipsoid
LED Qty: 48PCS
Demension: 500×19×17mm
Module interface Yellow Red Green Blue4×0.5mm2×60mm RV Traverse
Interface definition yellow anode, red, green and blue cathode
Cluster Qty: 3m(6pcs)
Module space between: 60mm±5％
Weight: 150g±5％
Lifespan: MTBF＞50000hours
enviroment parameter
working temperature —20℃~ 50℃
Defend Grade: IP65 Fully meet the Outdoor lamps protection standards
Electronic specification
Working input voltage DC5V±5%
Max power 3.6W
Driving mode Invariablenes Voltage! (Insure every LED working under the invariablenes voltage)
lighting capability
Luminous Flux: Red:72lm Green:115.6Im Blue:58Im
Beam angle >120°
