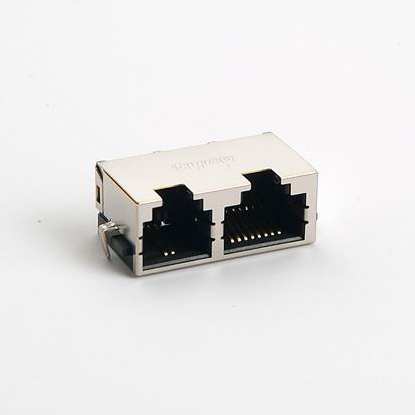

RJ45+RJ11 SMT Type

RJ45+RJ11 SMT Type

Model:
AAR-RJ5-306-XXX

Detail Specifications / Descriptions

1.Material
Housing:Thermoplastic high
temp,UL 94V-0,Black
Contact: Phosphor Bronze, thickness 0.35mm
Shell: Brass,thickness 0.25mm
Contact Plating: Hard gold plating over all,3u''-50u''
2.Electrical requirement
Contact Resistance:25 m Ohm Max
Insulation Resistance :500 M Ohm Min
3.Mechanical Requirement
Mating Force: 2.3 kgf Max
Unmating Force:1.0 kgf Max
