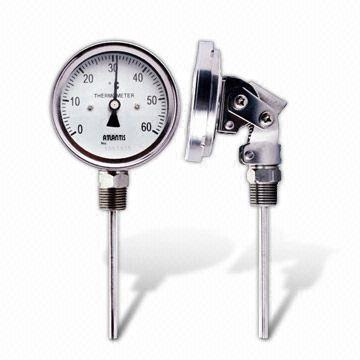

BIMETAL THERMOMETERS
BIMETAL THERMOMETERS Hot

Model:BTA series Country of Origin:Taiwan Material:Stainless steel

Detail Specifications / Descriptions

Dial diameter:3”;4”;5”;6”
Case:Stainless steel 304 case, IP65
Lens:Glass lens
Dial:Aluminum, black and red markings on white background
Pointer:Aluminum, black
Measuring principle:Coiled bimetal
Connection:stainless steel 304 standard, stainless steel 316 available
Standard-fixed male thread 1/4” PT(BSPT) / NPT for dial Φ3”
fixed male thread 1/2” PT(BSPT) / NPT for dial Φ4”;5”;6”
Other size or connection with male nut, union nut, compression fitting (sliding on stem) or plain stem (w/o fitting) available made-to-order.
Stem:Stainless steel 304 standard, stainless steel 316 available
Length: 2” ~ 50” by order (minimum immersed length should be 2”)
Stem diameter: Φ6.35mm (1/4”) standard;Φ4mm, 8mm, 9.5mm, 12mm available
Accuracy:±1% F.S.
Ranges:From -50 / +50 ℃ to 0 / +600℃ available <single scale ℃ or dual scale ℃ & ℉>
Optional extras:
Thermowell
Electrical contacts
