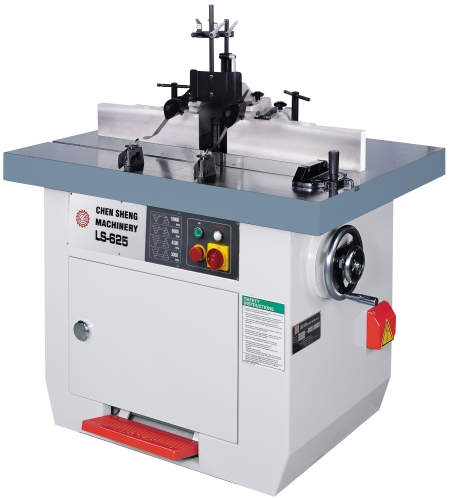

Basic Spindle Shaper
- Model:
- LS-625M
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
＊Spindle Dia,：3/4", 1", 1-1/4",30mm (Choice Of One Spindle Size)
＊Spindle Speed：3000/4500/7500/10000 R.P.M.
＊Taper Of Spindle：Mk5
＊Spindle Motor：5 Hp/3ph(7.5 Hp Opt.)
＊Spindle Travel：5"(130mm)
＊Spindle Capacity Under Nut：3-1/4", 3-3/4", 4-1/2"(3/4", 1", 1-1/4" Spindle)
＊Max. Table Insert Diameter：8-5/8"(220mm)
＊Table Size：41-3/8"x 31-1/8"(1050 X 800mm)
＊Table Height：35-1/2"(900mm)
＊Fence Size：4-15/16" x 35-1/2"(125 X 900mm)
