DB-350 / DB-455 Aluminum Window Machine Equipment
DB-350 / DB-455 Aluminum Window Machine Equipment

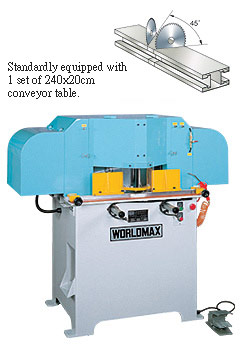

Model:DB-350 / DB-455 45 Degree Double Miter Cut-Off Saw

Detail Specifications / Descriptions

* Cutting Machines
* Double saw blades cut simultaneously providing 2/3 time saving than conventional cutting
* Four sides clamping by air cylinders assures secure clamping, deformation free and accurate angle of cut.
* Four lubrication nozzles give outstanding lubrication performance. Lubricant flushes only when cutting is performing for extending service life of saw blade.

DB-350
* Motor: 2HPx2
* Table Area: 870x260mm
* Table Height: 800mm
* Max. Width of Cut: 100mm
* Max. Height of Cut: 150mm
* Saw Blade: 45 Degree
* Cutting Angle: 1" x 14" x 2pcs
* Infeed and Outfeed Roller: 8'x 8'

DB-455
* Motor: 2HPx2
* Table Area: 870x290mm
* Table Height: 800mm
* Max. Width of Cut: 130mm
* Max. Height of Cut: 250mm
* Saw Blade: 45 Degree
* Cutting Angle: 1" x 18" x 2pcs
* Infeed and Outfeed Roller: 8'x 8'
