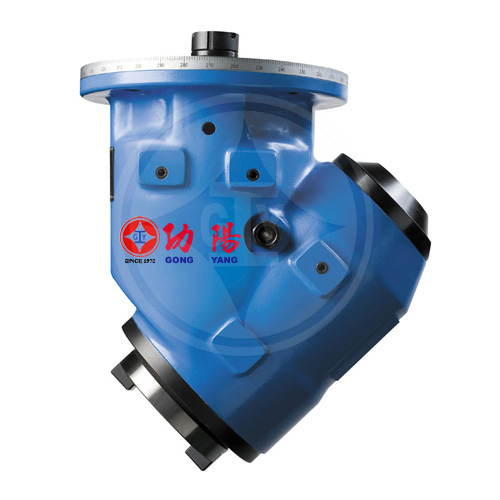

N30/N45 30° / 45° Angular Head  / Milling Head | For Double Column Milling Machine Application

N30/N45 30° / 45° Angular Head / Milling Head | For Double Column Milling Machine Application

Hot
Model:
N30/N45
Color:
Blue

Detail Specifications / Descriptions

GONG YANG 30° / 45° angular head could change machine to make 30°/45° angular milling. It is suitable to inner boring and milling of slots, end face repair, and beveled chamfering, etc.

Feature
30°/45°Angular Head features:
1. Could change machine to make 30°/45° angular milling.
2. Fit a spiral bevel gear, the machine more precise and wear resistant.
3. To install a Graduated Ring which can be regulated 360° to choose the direction of the milling cutter.
4. Suitable to inner boring and milling of slots, end face repair, and beveled chamfering, etc.
5. Gear and spindle are made of chromium molybdic acid alloy steel, through quenching and precise grinding.
6.Bearing is ball bearing, suitable for high-speed and light cutting.
7. Cutter shank can use NT or BT (pull stud must be removed). Particular suitable cutter shank draw bar can be attached which should be required when ordering.


specifications
TYPEMax Tool Dia.Reduction RatioMax TorqueMax HorsepowerMax Use SpeedSpindle SteeringAccessory
N30ψ1501:138KW1000N.m2000rpm#50/ForwardM16×P2.0×67L-4Pieces
N45ψ1501:138KW1000N.m2000rpm#50/ForwardM16×P2.0×67L-4Pieces



Application
