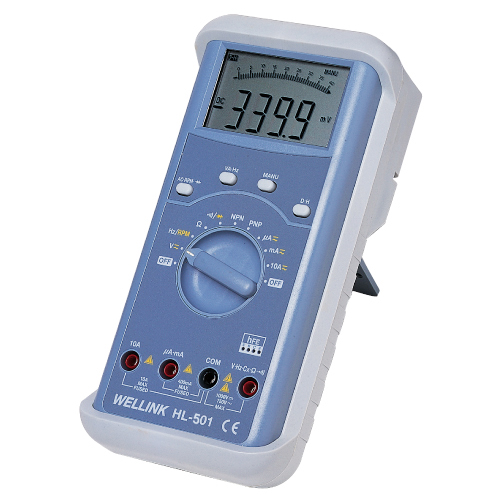

Auto-Range Digital Multi-Meter

‧3400 counts and bar graph display
‧Auto-Range and manual selection
‧V-Hz mode for voltage and frequency change measurement
‧Auto power off and re-power-on
‧Date hold
‧Low battery detect


‧DC Volt (Auto): 0-300mV/3V/30V/300V/1000V ±0.8%
‧AC Volt (Auto): 0-3V/3V/30V/300V/750V ±1.0%
‧ Frequency (Auto): 0-3KHz/30KHz/300KHz/3MHz/30MHz ±0.5%
‧RPM (Auto): 0-30K/300K/3M/30M/300M RPM ±0.5%
‧Resistance (Auto): 0-300Ω/3KΩ/30KΩ/300KΩ/3MΩ/ ±1.0%, 30MΩ ±2.0%
‧DCμA (Auto): 0-300μA/3000μA ±0.8%
‧DC mA (Auto): 0-30mA/300mA ± 0.8%
‧DC10A: 0-10A ±1.0%
‧ACμA (Auto): 0-300μA/3000μA ±1.2%
‧ACmA (Auto): 0-30mA/300mA ±1.2%
‧AC10A: 0-10A ±1.5%
‧Continuity test function: Beep<35Ω
‧Diode test function: Beep<0.25V
‧Transistor test function (NPN/PNP)


‧Protective holster
‧Dimension: 185(H)x85(W)x35(D)mm
‧Weight: 510g approx. including Protective holster
‧Safety: CE Approved, IEC 1010-2 (EMC / LVD)


Remark:
No accessory is provided in this meter for RPM measurement.
Additional purse sensor is needed for this purpose.
