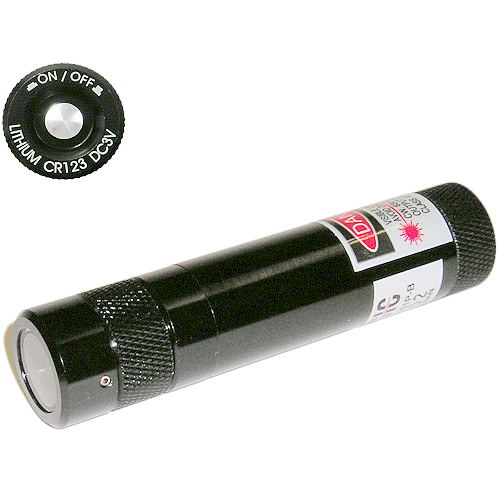

Point Mark-KML-3000P-B series
- Model:
- KML-3501P-B / KML-3502P-B
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
波長Wavelength:630 ~ 650 nm 可見紅光(RED)
輸出功率Output Power:1 mW / 2 mW
標點直徑Point Dia:1 / 2 / 3 mm 可調焦距 (Focus Adjustable)
輸入電壓Input Voltage:乾電池 LITHIUM CR123 DC3 V (Battery Only)
操作溫度Operating Temp.:– 10 ~ 50 °C
安全等級Safety Class:Class Ⅱ / Class Ⅲa
使用壽命Lifetimes:>15,000 小時 (hr)
外觀尺寸Dimensions:D 20 X L 88 (mm)
重量Weight:45 ± 5 公克 ( g ) (Without Battery) / 60 ± 5 公克 (g) (With Battery)
適用行業
● 鋼材鑽孔定位 Steel drillong location
● 木材打釘加工 Fixing timber processing
● 鈕扣鉚合加工 Buttons riveting process
● PCB加工 PCB processing
● 光軸校準 Axis calibration
● 基準點定位 Reference point for processing
特殊規格歡迎來電洽詢Special specifications please contact us
