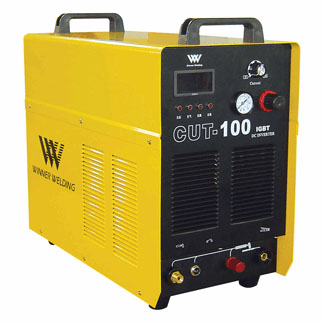

IGBT Inverter ARC Plasma Cutting Machine

IGBT Inverter ARC Plasma Cutting Machine

Model:
CUT-100
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Function and feature
* High frequency inverter, high duty cycle, low energy consumption.
* Compact, light weight and easy to carry, suitable for outdoor movable operation.
* High cutting speed, norrow cutting gap, smooth cutting surface, less distortion.
* Digital electric current disply adjustable and exact cutting current.
* Protective electric circuit built-in to prevent over heat, over current, over voltage or under voltage etc.

Features:
* Stabilizing
* Reliability
* Lightness
* Save-energy and no noise
* High cutting speed
* Cutting smoothly and no polish demands

Main technical parameters:
* Input Voltage/Frequency: 380V±10% 3Ph 50/60HZ
* Rate input power capacity (KVA): 7.9
* Output current range (A): 20~100
* Rate output voltage (V): 110
* O.C.V (V): 280
* Duty cycle (%): 60
* Efficency (%) 85
* Weight (kg): 34
* Overall dimension (mm): 565x205x505
* Exhaust (m/min): 6
* Pilot arc: yes
* Max.cutting thickness (mm): 38.0
