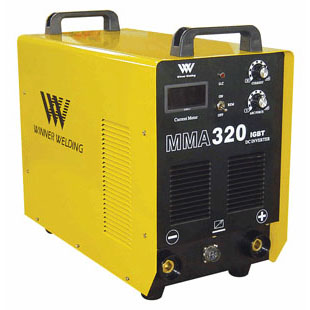

IGBT DC Inverter ARC Welding Machine
- Model:
- MMA-320
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Function and feature
* Light weight, high quality, stable arc.
* Suitable for welding of low carbon steel, cast iron, low alloy steel and stainless steel.
* Adapt to SMAW and simplified tig welding, the arc-500 and arc-600 is suitable for arc air gouging.
* Arc power and anti freeze are standard facilities.
* Remote control box can be provided (optional).
Features:
* Compact in volume, light in weight and power saved
* Easy to ARC initiation, resistance to interference, good force adjustment
* Stable welding current, low welding saptter
* Good welding result, deep welding pool, high intension
* Protection for over voltage, over current
* Automatic voltage pulsation compensation capability
* Applicable for various acid and basic welding electrodes
* Down hand cellulose electrode
Main technical parameters:
* Input Voltage/Frequency: 380V±10% 3Ph 50/60HZ
* Rate input power capacity (KVA): 14.4
* Output current range (A): 40~320
* Rate output voltage (V): 34
* O.C.V (V): 66
* Duty cycle (%): 60
* Efficency (%): 85
* Weight (kg): 23
* Overall dimension (mm): 515x265x445
* No load loss (W): 200
* Diameter of rod (mm): 2.6~6.0
