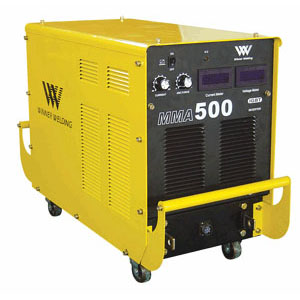

IGBT DC Inverter ARC Welding Machine

Function and feature
* Light weight, high quality, stable arc.
* Suitable for welding of low carbon steel, cast iron, low alloy steel and stainless steel.
* Adapt to SMAW and simplified tig welding, the arc-500 and arc-600 is suitable for arc air gouging.
* Arc power and anti freeze are standard facilities.
* Remote control box can be provided (optional).

Features:
* Adopting IGBT inverter technology
* More effective, more stronger concentrated and more stable ARC
* Power saving, good welding pool, high no-load voltage, good capacity of force compensation and multi-use
* Excellent for stainless steel, alloy steel, copper and other color metal
* Apply in high altitude, the open air and inside and outside decoration
* Compact in volume, light in weight, easy to install and operate compared with the same products of home and abroad

Main technical parameters:
* Input Voltage/Frequency: 380V±10% 3Ph 50/60HZ
* Rate input power capacity (KVA): 25.3
* Output current range (A): 40~500
* Rate output voltage (V): 40
* O.C.V (V): 72
* Duty cycle (%): 60
* Efficency (%): 85
* Weight (kg): 40
* Overall dimension (mm): 760x313x500
* No load loss (W): 200
* Diameter of rod (mm): 2.6~8.0
