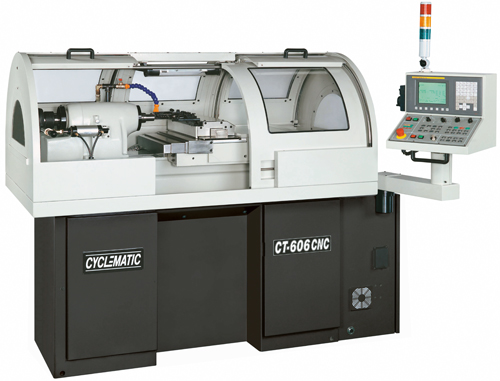

CNC Toolroom Lathe

CNC Toolroom Lathe

Country of Origin:
Taiwan

Detail Specifications / Descriptions

·Precision ball screw on X, Z-axes
·Linear motion guides on X, Z-axes
·Steel telescopic way guards on Z-axis provide better protection.
·X, Z-axis feed is driven by a AC servo motor.
·X, Z-axis ball screws directly coupled to AC servo motor, minimizing backlash.
·Fast lever collet chucking with a single movement.
·Power collet closer is optional.
·The spindle is mounted in high precision preloaded angular contact ball bearings eliminating radial and end play.
·A wide variety of optional accessories to increase versatility of the machine.
·Powerful 3 HP motor (5HP-Optional) with Yaskawa current vector inverter drive for improved torque response at low end.
