GR, cylinder
GR, cylinder

Model:GR-010 Country of Origin:Taiwan Material:steel alloy

Detail Specifications / Descriptions

GR125 cylinder =Z1 125 cylinder = R1 125 cylinder = H6B cylinder (9.16 HP)
The forging piston waste time to produce and need high skill to make, but it can use for a long time and more hard than usually one.
( ビッグボアシリンダー )

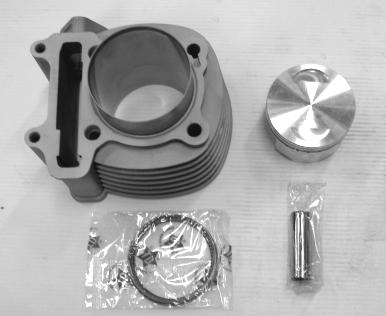

Include cylinder body,Piston,Piston ring, Pin, gasket and G ring.
Original Size: 52.4x 57.8 (124.6cc )
GR-01058.5-f GR Big bore 58.5 mm cylinder forging (155.3 cc)
GR-01061-f GR Big bore 61 mm cylinder forging (168.9 cc)
Taida’s GR61 cylinder don’t cut the engine block.
GR-01063.5-f GR Big bore 63.5 mm cylinder forging (183 cc)
Taida’s GR 63.5 mm cylinder must cut the engine block.
GR-01065 GR Big bore 65 mm cylinder forging (191.8 cc )
GR-01066-f GR Big bore 66 mm cylinder forging(197.7 cc )
GR-01067 GR Big bore 67 mm cylinder ( 203.7 cc )
GR-01067-f GR Big bore 67 mm cylinder forging( 203.7 cc )
----------------------------------------------------------------------------------------------------
Especificación detallada

GR125 cilindro =Z1 125 cilindro =H6B cilindro ( 9.16 HP )
La duración de porducir el pistón forjado es más larga, así que el forjado es más duradero que el fundido.
Incluye el cilindro, pistón, anillo de pistón, Pin, juntas y anillos de forma G.
Tamaño original : 52.4x 57.8 (124.6 cc )
GR-01058.5-f GR Big bore 58.5 mm cilindro forjado (155.3 cc )
GR-01061-f GR Big bore 61 mm cilindro forjado (168.9 cc )
GR 61mm cilindro de Taida no nesecita cortar el bloque del motor.
GR-01063.5-f GR Big bore 63.5 mm cilindro forjado (183 cc )
GR 63.5 mm cilindro de Taida nesecita cortar el bloque del motor.
GR-01065 GR Big bore 65 mm cilindro forjado (191.8 cc)
GR-01066-f GR Big bore 66 mm cilindro forjado(197.7 cc)
GR-01067 GR Big bore 67 mm cilindro ( 203.7 cc )
GR-01067-f GR Big bore 67 mm cilindro forjado( 203.7 cc)
