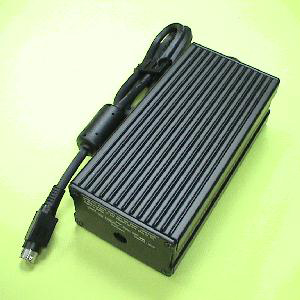

BSD-120-119 19V / 120W Car Adapter

BSD-120-119 19V / 120W Car Adapter

Model:
BSD-120

Detail Specifications / Descriptions

Input
* Input voltage: 12-32Vdc (Wide range)
* Input Frequency: DC
* Input current: 12A
* Efficiency: >80% at Full Load

Output
* Output Rating: 120W
* Output Voltage: +19VDC(other outputs see detail spec.)
* Output current: 6.3A
* Line Regulation: 1%
* Load Regulation: 5%
* Ripple & Noise: 1% P-P max

Protection
* Over Voltage Protection
* Short circuit Protection
* Over current Protection
* Input over / undervoltage protection

Input Plug: Cigarette plug cable
Output Plug: As required

Dimension: 152 X 73 X 50mm
