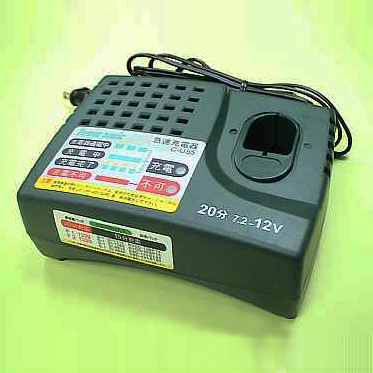

SH-100 20 Min. Battery Charger
- Model:
- SH-100
Detail Specifications / Descriptions
Input
* Input voltage: 90 to 264Vac (Wide Range)
* Input Frequency: 47Hz ~ 63Hz
* Input VA: 240VA max.
* Inrush current: 35A, cold start, 25℃.
* Efficiency: >70% at fast charge
Output
* Output Volatge: +8.0V ~ +24VDC
* Output current: 4.5+-0.5A
* Line Regulation: 1%
* Load Regulation: 5%
Protection
* Over Voltage Protection
* Short circuit Protection
* Over current Protection
* 40 deg. C temperature cut off
* Peak voltage cut off detection
LED Status Indication:
* Pending: Led & buzzer off
* Battery low: green flash 1S
* In charge: green on
* Charge complete: green flash, buzzer
* Overtemperature: red flash, buzzer
Charge Time: 20 minutes for 6-12V / 1.3AH battery pack
Dimension: 178 x 135 x 66mm
