TAI JIH MACHINERY CO., LTD.

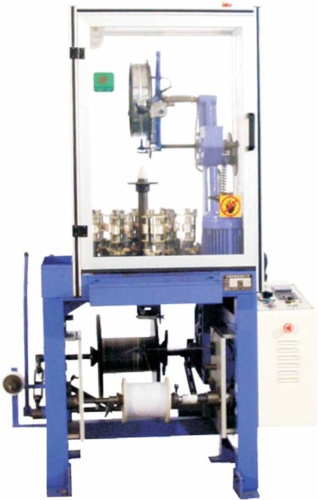

Electrical wire and cable braiding machines
Electrical wire and cable braiding machines

Model:CHA-16S-WAA型

Detail Specifications / Descriptions

Wire specification:RF- Φ 0. 03mm × 3RF- Φ 0. 05mm × 3RF- Φ 0. 08mm × 3。 Braiding density: ≥ 95%(16plaits/in- 42plaits/in)。 Braiding speed:60m/h-20m/h. 。 Production speed:65-75 r. p. m. 。 Automatic stop device for wire breakage。 Core wire offer by power driving system。 Material for Rolling Ring system used:UHING Germany brand。 Whole cover for safety protection Control Sysem:。 AC Moter:1HP。 Inverter control system。 Voltage:50/60 Hz,3p,(220V. 380V. 460V. ± 10%)。 Core wire device:electrostatic sensor "KFTS"。 Optical sensor。 Retrograde movement function device
